Ceratizit EWM.40,25.DIN69871-ADB50.IR/IL CoreLine Circular Milling Cutter 50849148 (0769652)
Ceratizit EWM.40,25.DIN69871-ADB50.IR/IL CoreLine Circular Milling Cutter 50849148 (0769652)
Couldn't load pickup availability
Ceratizit Article Number: 50849148
Ceratizit Material Number: 5084914800
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit EWM.40,25.DIN69871-ADB50.IR/IL CoreLine Circular Milling Cutter 50849148 | |
| EDP # | 0769652 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 145.0 oz | 4120 g |

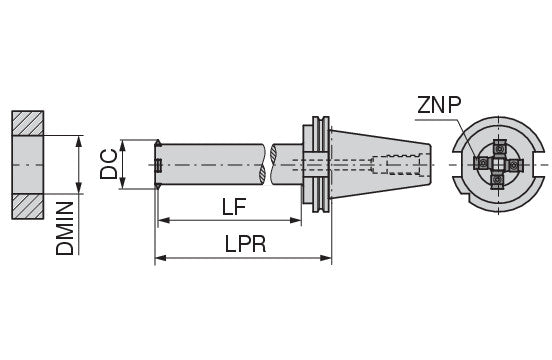

| Cutting diameter / DC | 1.5846" | 40.250 mm |
| Minimum bore diameter / DMIN | 1.6929" | 43.000 mm |
| Thread pitch range / TP | 1.5 - 6.0 | |
| Threads per inch range / TPI - R / TPI | 16 - 4.0 | |
| Overall length / OAL | 11.0433" | 280.500 mm |
| Peripheral mounted insert count / ZNP | 4.0000" | 101.600 mm |
| Protruding length / LPR | 7.0354" | 178.700 mm |
| Functional length / LF | 5.7087" | 145.000 mm |
| torque moment | 5.5 Nm | |
| Machine interface size | SK 50 | |
Tool Form:
'E' form tools are multi-point thread mills with a fixed pitch.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
