Description
Ceratizit Article Number: 50852317
Ceratizit Material Number: 5085231700
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

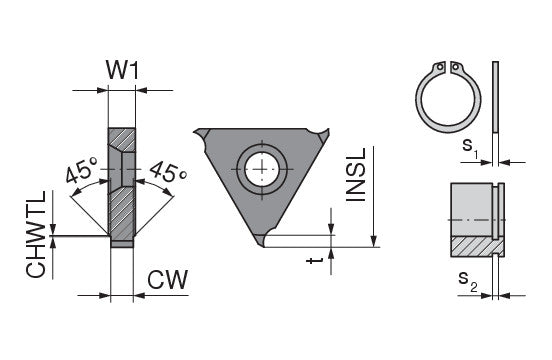

| Properties | ||
|---|---|---|
| Name | Ceratizit S300.02.1,93.17,5.1,25.MKB TI500 ModuSet - Milling Inserts For circlip Grooves With Chamfer 50852317 | |
| EDP # | 0769666 | |
| Weight (1 pc.) | 0.2 oz | 5.1 g |
| Size | 02 | |
| S2 - CIRCLIP H13 | 7.2835" | 185.000 mm |
| Insert length / INSL | 6.8898" | 175.000 mm |
| Cutting width / CW -0,03 | 7.5984" | 193.000 mm |
| Flank chamfer width left hand / CHWTL | 0.0787" | 2.000 mm |
| S1 - CIRCLIP | 6.8898" | 175.000 mm |
| T | 4.9213" | 125.000 mm |
| Insert width / W1 | 1.3780" | 35.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
