Ceratizit S300.03.0,98.10,6.OKB TI500 CoreLine - Milling Insert For circlip Grooves Without Chamfer - System 50853302 (0769680)
Ceratizit S300.03.0,98.10,6.OKB TI500 CoreLine - Milling Insert For circlip Grooves Without Chamfer - System 50853302 (0769680)
Couldn't load pickup availability
Ceratizit Article Number: 50853302
Ceratizit Material Number: 5085330200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

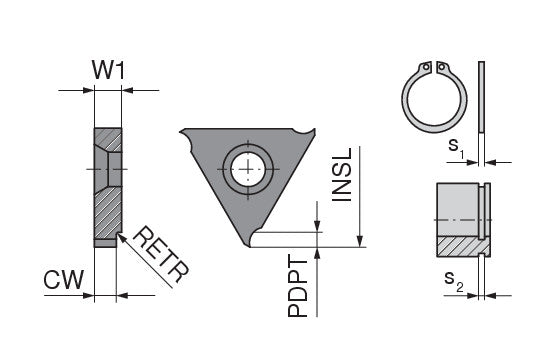

| Properties | ||
|---|---|---|
| Name | Ceratizit S300.03.0,98.10,6.OKB TI500 CoreLine - Milling Insert For circlip Grooves Without Chamfer - System 50853302 | |
| EDP # | 0769680 | |
| Weight (1 pc.) | 0.05 oz | 1.4 g |
| Machining process - Main Application | Circlip grooves | |
| Size | 3.0000" | 76.200 mm |
| S2 - CIRCLIP H13 | 0.0354" | 0.900 mm |
| Insert length / INSL | 0.4173" | 10.600 mm |
| Cutting width / CW -0,03 | 0.0386" | 0.980 mm |
| Flank radius right hand / RETR | 0.0118" | 0.300 mm |
| S1 - CIRCLIP | 0.0315" | 0.800 mm |
| Profile depth insert / PDPT | 0.0276" | 0.700 mm |
| Insert width / W1 | 0.0921" | 2.340 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
