Ceratizit S300.02.3,23.17,5.OKB TI500 CoreLine - Milling Insert For circlip Grooves Without Chamfer - System 50853326 (0769692)
Ceratizit S300.02.3,23.17,5.OKB TI500 CoreLine - Milling Insert For circlip Grooves Without Chamfer - System 50853326 (0769692)
Couldn't load pickup availability
Ceratizit Article Number: 50853326
Ceratizit Material Number: 5085332600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

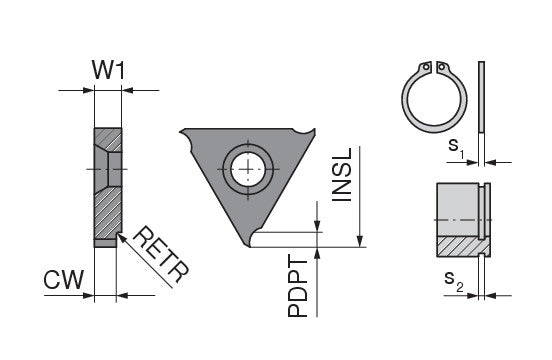

| Properties | ||
|---|---|---|
| Name | Ceratizit S300.02.3,23.17,5.OKB TI500 CoreLine - Milling Insert For circlip Grooves Without Chamfer - System 50853326 | |
| EDP # | 0769692 | |
| Weight (1 pc.) | 0.2 oz | 5.1 g |
| Machining process - Main Application | Circlip grooves | |
| Size | 2.0000" | 50.800 mm |
| S2 - CIRCLIP H13 | 0.1240" | 3.150 mm |
| Insert length / INSL | 0.6890" | 17.500 mm |
| Cutting width / CW -0,03 | 0.1272" | 3.230 mm |
| Flank radius right hand / RETR | 0.0118" | 0.300 mm |
| S1 - CIRCLIP | 0.1181" | 3.000 mm |
| Profile depth insert / PDPT | 0.0866" | 2.200 mm |
| Insert width / W1 | 0.1378" | 3.500 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
