Ceratizit S300.03.M2,0.10,6.IR/IL TI500 CoreLine - Thread Milling Insert - Full Profile - System 50859310 (0769711)
Ceratizit S300.03.M2,0.10,6.IR/IL TI500 CoreLine - Thread Milling Insert - Full Profile - System 50859310 (0769711)
Couldn't load pickup availability
Ceratizit Article Number: 50859310
Ceratizit Material Number: 5085931000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit S300.03.M2,0.10,6.IR/IL TI500 CoreLine - Thread Milling Insert - Full Profile - System 50859310 | |
| EDP # | 0769711 | |
| Weight (1 pc.) | 0.1 oz | 2.3 g |
| Machining process - Main Application | Internal thread, right / left | |
| Size | 3.0000" | 76.200 mm |
| Thread pitch / TP | 0.0787" | 2.000 mm |

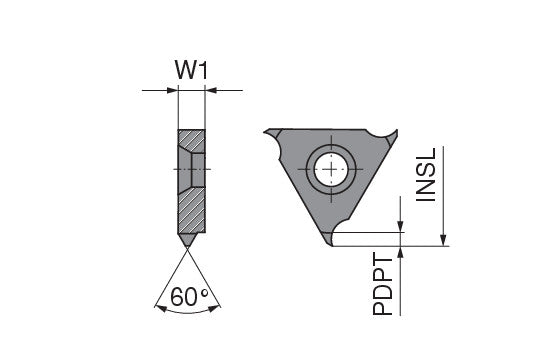

| Insert length / INSL | 0.4173" | 10.600 mm |
| Profile depth insert / PDPT | 0.0456" | 1.160 mm |
| Insert width / W1 | 0.0921" | 2.340 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
