Description
Ceratizit Article Number: 50861411
Ceratizit Material Number: 5086141100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

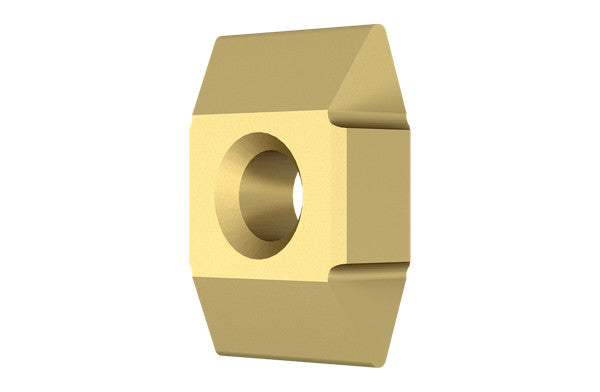

| Name | Ceratizit EAW.32,85.G11 TIN CoreLine - Thread Milling Insert - Partial Profile - 50861411 | |
| EDP # | 0769733 | |
| Weight (1 pc.) | 0.2 oz | 5.1 g |
| Machining process - Main Application | Internal thread, right / left | |

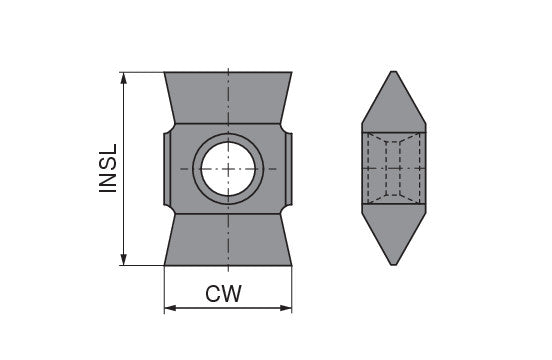

| Insert length / INSL | 0.5315" | 13.500 mm |
| Threads per inch / TPI | 11 | |
| Thread pitch / TP | 0.0909" | 2.310 mm |
| Cutting width / CW | 0.3346" | 8.500 mm |
| Cutting edge Ø - range / DC | 1.2933" | 32.850 mm |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
