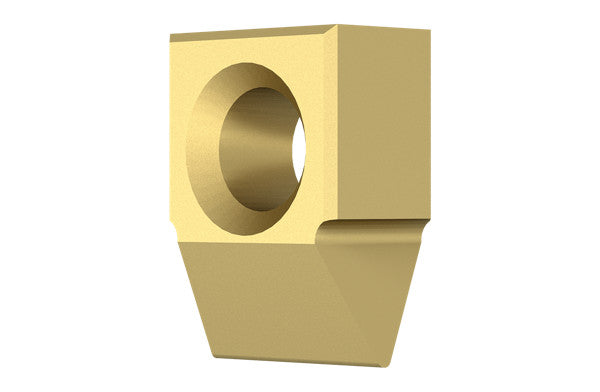

Ceratizit EAW.16,5.M1,5-3,0 TIN CoreLine Thread Milling Insert Partial Profile 50867115 (0769750)
Ceratizit EAW.16,5.M1,5-3,0 TIN CoreLine Thread Milling Insert Partial Profile 50867115 (0769750)
Couldn't load pickup availability
Ceratizit Article Number: 50867115
Ceratizit Material Number: 5086711500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit EAW.16,5.M1,5-3,0 TIN CoreLine Thread Milling Insert Partial Profile 50867115 | |
| EDP # | 0769750 | |
| Weight (1 pc.) | 0.05 oz | 1.3 g |
| Machining process - Main Application | Internal thread, right / left | |
| Insert length / INSL | 0.2756" | 7.000 mm |
| Cutting width / CW | 0.1969" | 5.000 mm |
| Threads per inch range / TPI - R / TPI | 16 - 10 | |
| Cutting edge Ø - range / DC | 0.6496" | 16.500 mm |
| Thread pitch range / TP | 1.5 - 3.0 | |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
