Ceratizit EWM.92,00.6,0-8,0 TIN CoreLine Thread Milling Insert Partial Profile 50870760 (0769757)
Ceratizit EWM.92,00.6,0-8,0 TIN CoreLine Thread Milling Insert Partial Profile 50870760 (0769757)
Couldn't load pickup availability
Ceratizit Article Number: 50870760
Ceratizit Material Number: 5087076000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit EWM.92,00.6,0-8,0 TIN CoreLine Thread Milling Insert Partial Profile 50870760 | |
| EDP # | 0769757 | |
| Weight (1 pc.) | 2.0 oz | 42.8 g |
| Machining process - Main Application | Internal thread, right / left | |

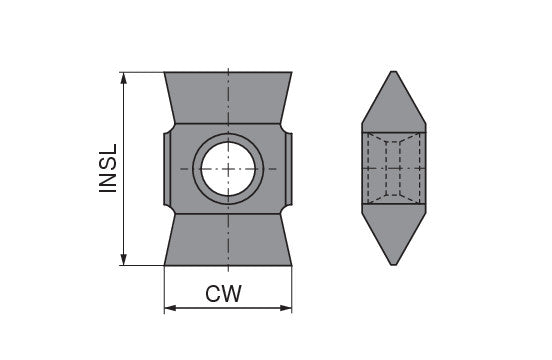

| Insert length / INSL | 1.1252" | 28.580 mm |
| Threads per inch / TPI | 4 | |
| Cutting width / CW | 0.5630" | 14.300 mm |
| Threads per inch range / TPI - R / TPI | 4 | |
| Cutting edge Ø - range / DC | 3.6220" | 92.000 mm |
| Thread pitch range / TP | 6.0 - 8.0 | |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
