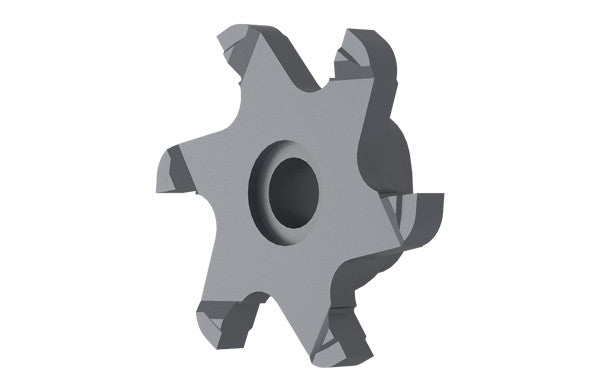

Ceratizit POLYGON.10.1,68.26,0.Z6.MKB TI500 CoreLine - Milling Insert For circlip Grooves With Chamfer - 50879324 (0769822)
Ceratizit POLYGON.10.1,68.26,0.Z6.MKB TI500 CoreLine - Milling Insert For circlip Grooves With Chamfer - 50879324 (0769822)
Couldn't load pickup availability
Ceratizit Article Number: 50879324
Ceratizit Material Number: 5087932400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

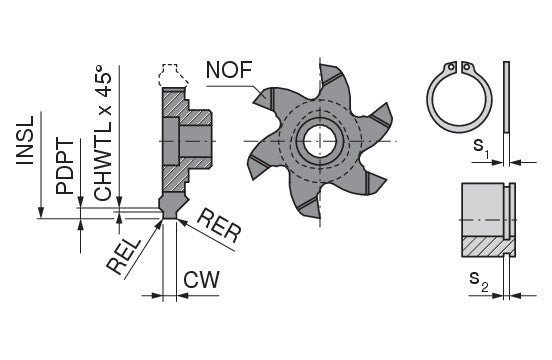

| Properties | ||
|---|---|---|
| Name | Ceratizit POLYGON.10.1,68.26,0.Z6.MKB TI500 CoreLine - Milling Insert For circlip Grooves With Chamfer - 50879324 | |
| EDP # | 0769822 | |
| Weight (1 pc.) | 1.0 oz | 14.3 g |
| Machining process - Main Application | Circlip grooves | |
| Size | 10.0000" | 254.000 mm |
| S2 - CIRCLIP H13 | 0.0630" | 1.600 mm |
| Insert length / INSL | 1.0236" | 26.000 mm |
| Cutting width / CW -0,03 | 0.0661" | 1.680 mm |
| Flank chamfer width left hand / CHWTL | 0.0059" | 0.150 mm |
| S1 - CIRCLIP | 0.0591" | 1.500 mm |
| Corner radius left hand / REL | 0.0039" | 0.100 mm |
| Profile depth insert / PDPT | 0.0394" | 1.000 mm |
| Flute count / NOF | 6.0000" | 152.400 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
