Ceratizit POLYGON.10.1,68.26,0.6°.Z6.OKB TI500 CoreLine - Milling Insert For circlip Grooves Without Chamfer - 50880324 (0769848)
Ceratizit POLYGON.10.1,68.26,0.6°.Z6.OKB TI500 CoreLine - Milling Insert For circlip Grooves Without Chamfer - 50880324 (0769848)
Couldn't load pickup availability
Ceratizit Article Number: 50880324
Ceratizit Material Number: 5088032400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

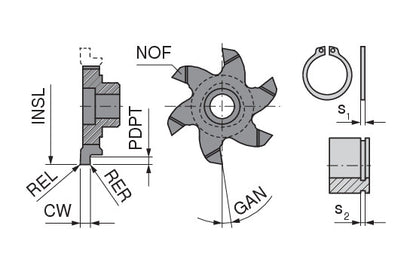

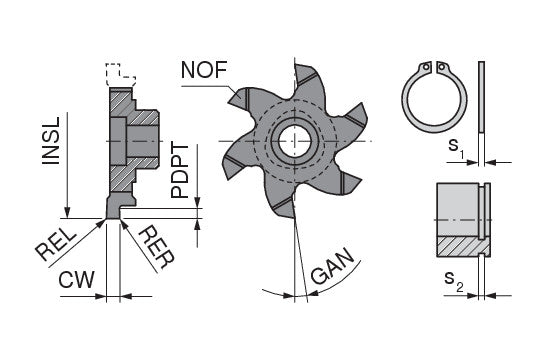

| Properties | ||
|---|---|---|
| Name | Ceratizit POLYGON.10.1,68.26,0.6°.Z6.OKB TI500 CoreLine - Milling Insert For circlip Grooves Without Chamfer - 50880324 | |
| EDP # | 0769848 | |
| Weight (1 pc.) | 0.5 oz | 14.1 g |
| Machining process - Main Application | Circlip grooves | |
| Size | 10.0000" | 254.000 mm |
| S2 - CIRCLIP H13 | 0.0630" | 1.600 mm |
| Insert length / INSL | 1.0236" | 26.000 mm |
| Cutting width / CW -0,03 | 0.0661" | 1.680 mm |
| Flank radius right hand / RETR | 0.0118" | 0.300 mm |
| S1 - CIRCLIP | 0.0591" | 1.500 mm |
| Flute count / NOF | 6.0000" | 152.400 mm |
| Corner radius left hand / REL | 0.0039" | 0.100 mm |
| Profile depth insert / PDPT | 0.0492" | 1.250 mm |
| Insert width / W1 | 0.1437" | 3.650 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
