Ceratizit POLYGON.9.UNF.1-12.20,0.60°.Z6 TI500 CoreLine Thread Milling Insert Full Profile 50886322 (0769927)
Ceratizit POLYGON.9.UNF.1-12.20,0.60°.Z6 TI500 CoreLine Thread Milling Insert Full Profile 50886322 (0769927)
Couldn't load pickup availability
Ceratizit Article Number: 50886322
Ceratizit Material Number: 5088632200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit POLYGON.9.UNF.1-12.20,0.60°.Z6 TI500 CoreLine Thread Milling Insert Full Profile 50886322 | |
| EDP # | 0769927 | |
| Weight (1 pc.) | 3.0 oz | 95.4 g |
| Machining process - Main Application | Internal thread, right / left | |
| Size | 9.0000" | 228.600 mm |

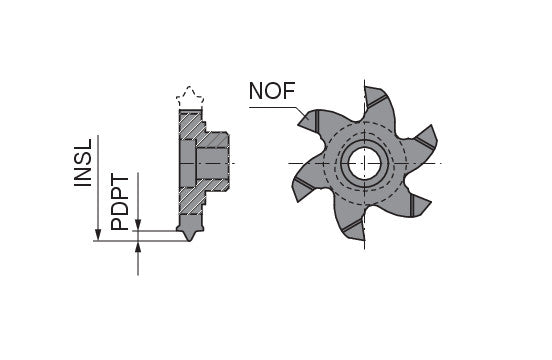

| Insert length / INSL | 0.7874" | 20.000 mm |
| Flute count / NOF | 6.0000" | 152.400 mm |
| Thread | 1 - 12 | |
| Profile depth insert / PDPT | 0.0483" | 1.230 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
