Ceratizit POLYGON.6.R1,19.11,7.2,25.Z3 TI500 CoreLine - Milling Insert For Radius Milling - 50886706 (0769930)
Ceratizit POLYGON.6.R1,19.11,7.2,25.Z3 TI500 CoreLine - Milling Insert For Radius Milling - 50886706 (0769930)
Couldn't load pickup availability
Ceratizit Article Number: 50886706
Ceratizit Material Number: 5088670600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

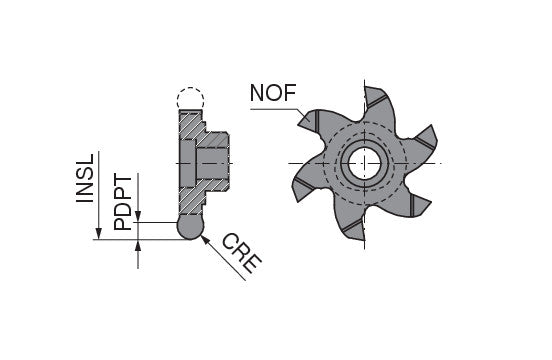

| Properties | ||
|---|---|---|
| Name | Ceratizit POLYGON.6.R1,19.11,7.2,25.Z3 TI500 CoreLine - Milling Insert For Radius Milling - 50886706 | |
| EDP # | 0769930 | |
| Weight (1 pc.) | 0.1 oz | 1.9 g |
| Machining process - Main Application | Full radius slot milling | |
| Size | 6.0000" | 152.400 mm |
| Insert length / INSL | 0.4606" | 11.700 mm |
| Flute count / NOF | 3.0000" | 76.200 mm |
| Spot radius / CRE | 0.0469" | 1.190 mm |
| Profile depth insert / PDPT | 0.0886" | 2.250 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
