Ceratizit GZG.26.G.11.I/E.Z11 TI500 CoreLine - Thread Milling Insert - 50888330 (0769950)
Ceratizit GZG.26.G.11.I/E.Z11 TI500 CoreLine - Thread Milling Insert - 50888330 (0769950)
Couldn't load pickup availability
Ceratizit Article Number: 50888330
Ceratizit Material Number: 5088833000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

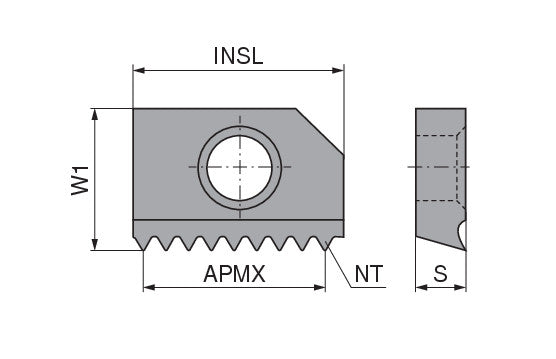

| Properties | ||
|---|---|---|
| Name | Ceratizit GZG.26.G.11.I/E.Z11 TI500 CoreLine - Thread Milling Insert - 50888330 | |
| EDP # | 0769950 | |
| Weight (1 pc.) | 1.0 oz | 26.4 g |
| Machining process - Main Application | External and internal thread, right / left | |
| Insert length / INSL | 1.0236" | 26.000 mm |
| Threads per inch / TPI | 11 | |
| Thread pitch / TP | 0.0909" | 2.310 mm |
| Insert width / W1 | 0.5906" | 15.000 mm |
| Depth of cut maximum / APMX | 0.9091" | 23.090 mm |
| Insert thickness / S | 0.1969" | 5.000 mm |
| Tooth count / NT | 11.0000" | 279.400 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
