Ceratizit MWN.10,4.UN.20.IR/IL K20 CoreLine - Thread Milling Insert - 50892100 (0770013)
Ceratizit MWN.10,4.UN.20.IR/IL K20 CoreLine - Thread Milling Insert - 50892100 (0770013)
Couldn't load pickup availability
Ceratizit Article Number: 50892100
Ceratizit Material Number: 5089210000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MWN.10,4.UN.20.IR/IL K20 CoreLine - Thread Milling Insert - 50892100 | |
| EDP # | 0770013 | |
| Weight (1 pc.) | 0.1 oz | 1.6 g |
| Machining process - Main Application | Internal thread, right / left | |

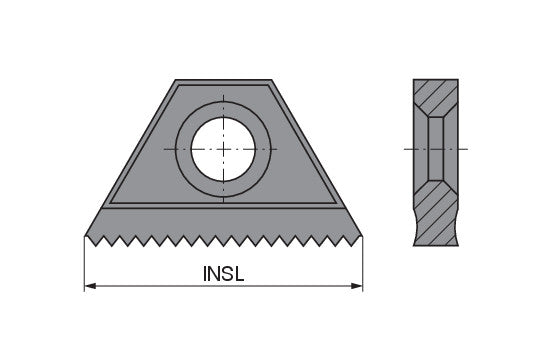

| Insert length / INSL | 0.4094" | 10.400 mm |
| Threads per inch / TPI | 20 | |
| Thread pitch / TP | 0.0500" | 1.270 mm |
| Insert width / W1 | 0.2429" | 6.170 mm |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
