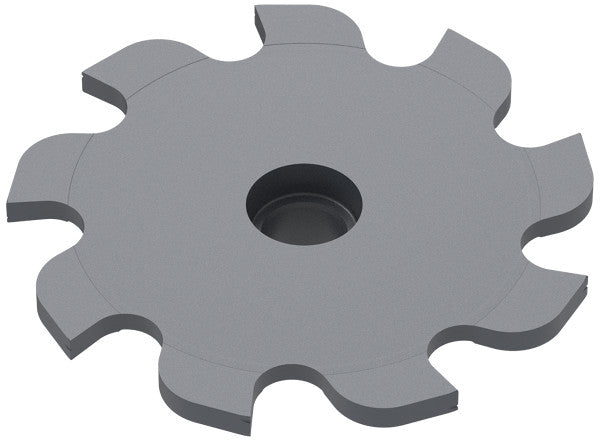

Ceratizit POLYGON.7.22.1,5.Z9 TI500 CoreLine - Milling Insert For Part-off - 5180022000 (0770320)
Ceratizit POLYGON.7.22.1,5.Z9 TI500 CoreLine - Milling Insert For Part-off - 5180022000 (0770320)
Couldn't load pickup availability
Ceratizit Article Number: 5180022000
Ceratizit Material Number: 5180022000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit POLYGON.7.22.1,5.Z9 TI500 CoreLine - Milling Insert For Part-off - 5180022000 | |
| EDP # | 0770320 | |
| Weight (1 pc.) | 1.0 oz | 21.0 g |
| Machining process - Main Application | Part-off milling | |

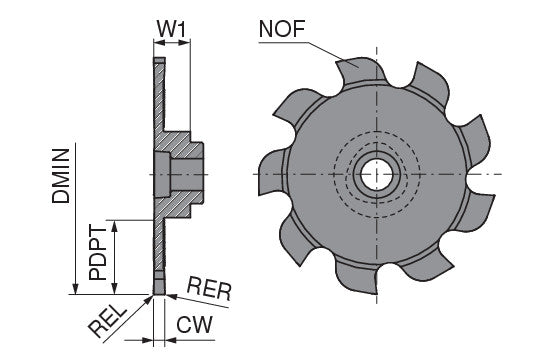

| Size | 7.0000" | 177.800 mm |
| Cutting width / CW +0,02 | 0.0591" | 1.500 mm |
| Flute count / NOF | 9.0000" | 228.600 mm |
| Minimum bore diameter / DMIN | 0.8661" | 22.000 mm |
| Corner radius left hand / REL | 0.0039" | 0.100 mm |
| Profile depth insert / PDPT | 0.2520" | 6.400 mm |
| Insert width / W1 | 0.1520" | 3.860 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
