Ceratizit PCR-UNI.H-SA.19,5.36°.Z4.HB.K APA72S MonsterMill Plunge Milling Cutter With Corner Radius 52613195 (0770831)
Ceratizit PCR-UNI.H-SA.19,5.36°.Z4.HB.K APA72S MonsterMill Plunge Milling Cutter With Corner Radius 52613195 (0770831)
Couldn't load pickup availability
Ceratizit Article Number: 52613195
Ceratizit Material Number: 5261319500
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

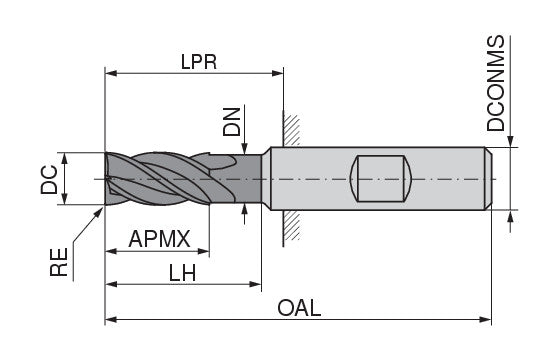

| Properties | ||
|---|---|---|
| Name | Ceratizit PCR-UNI.H-SA.19,5.36°.Z4.HB.K APA72S MonsterMill Plunge Milling Cutter With Corner Radius 52613195 | |
| EDP # | 0770831 | |
| Weight (1 pc.) | 13.0 oz | 355 g |
| Product-Carbon-Footprint | C | |
| Machining process - Main Application | Peripheral milling | |
| Cutting diameter / DC f8 | 0.7677" | 19.500 mm |
| Corner radius / RE ±0,03 | 0.0197" | 0.500 mm |
| Depth of cut maximum / APMX | 1.0236" | 26.000 mm |
| Protruding length / LPR | 1.6535" | 42.000 mm |
| Overall length / OAL | 3.6220" | 92.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.7874" | 20.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4.0000" | 101.600 mm |
| Coating name / Grade (Ceratizit) / COATN | APA72S | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
