Ceratizit PCR-UNI.H-SA.20,0.36°.Z4.HB.K APA72S MonsterMill Plunge Milling Cutter With Corner Radius 52613200 (0770832)
Ceratizit PCR-UNI.H-SA.20,0.36°.Z4.HB.K APA72S MonsterMill Plunge Milling Cutter With Corner Radius 52613200 (0770832)
Couldn't load pickup availability
Ceratizit Article Number: 52613200
Ceratizit Material Number: 5261320000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit PCR-UNI.H-SA.20,0.36°.Z4.HB.K APA72S MonsterMill Plunge Milling Cutter With Corner Radius 52613200 | |
| EDP # | 0770832 | |
| Weight (1 pc.) | 13.0 oz | 366 g |
| Product-Carbon-Footprint | C | |
| Machining process - Main Application | Peripheral milling | |

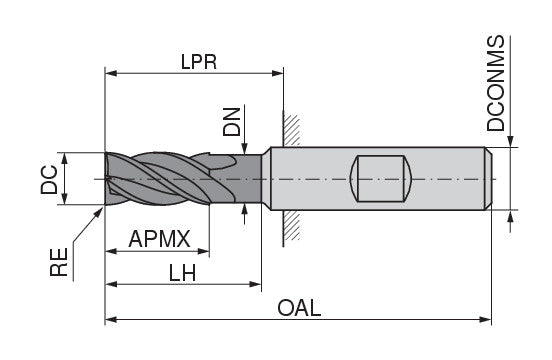

| Cutting diameter / DC f8 | 0.7874" | 20.000 mm |
| Corner radius / RE ±0,03 | 0.0197" | 0.500 mm |
| Depth of cut maximum / APMX | 1.0236" | 26.000 mm |
| Protruding length / LPR | 1.6535" | 42.000 mm |
| Overall length / OAL | 3.6220" | 92.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.7874" | 20.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4.0000" | 101.600 mm |
| Coating name / Grade (Ceratizit) / COATN | APA72S | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
