Ceratizit N.SA.0,2.30°.Z2.HA.K0,44/38 DPA72S CoreLine - Micro End Mills - 52802021 (0771186)
Ceratizit N.SA.0,2.30°.Z2.HA.K0,44/38 DPA72S CoreLine - Micro End Mills - 52802021 (0771186)
Couldn't load pickup availability
Ceratizit Article Number: 52802021
Ceratizit Material Number: 5280202100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit N.SA.0,2.30°.Z2.HA.K0,44/38 DPA72S CoreLine - Micro End Mills - 52802021 | |
| EDP # | 0771186 | |
| Weight (1 pc.) | 0.3 oz | 8.8 g |

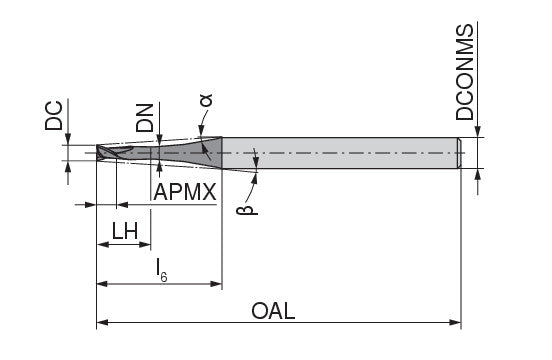

| Cutting diameter / DC -0,016 mm | 0.0079" | 0.200 mm |
| Depth of cut maximum / APMX | 0.0047" | 0.120 mm |
| Neck Diameter / DN | 0.0063" | 0.160 mm |
| Head length / LH | 0.0173" | 0.440 mm |
| L6 | 0.2244" | 5.700 mm |
| Protruding length / LPR | 0.2283" | 5.800 mm |
| Overall length / OAL | 1.4961" | 38.000 mm |
| Alpha | 15.0000" | 381.000 mm |
| Beta | 14.0000" | 355.600 mm |
| Mounting spigot diameter / DCONMS h5 | 0.1181" | 3.000 mm |
| Peripheral effective cutting edge count / ZEFP | 2.0000" | 50.800 mm |
| Coating name / Grade (Ceratizit) / COATN | DPA72S | |
| Product-Carbon-Footprint | F | |
| Machining process - Main Application | Peripheral milling | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
