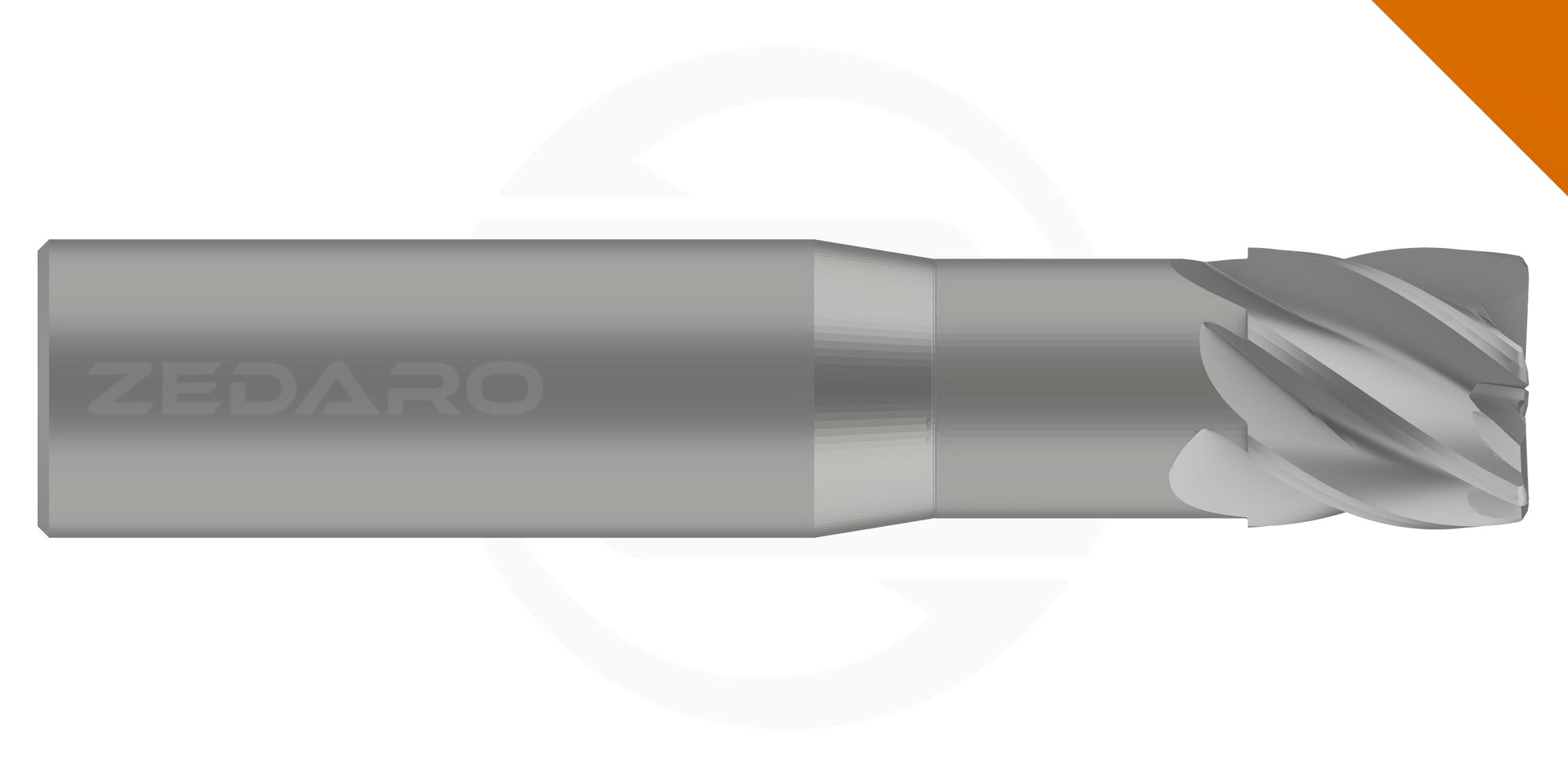

Zedaro ORGSTRIPR-12.00R0.50-CUSTOMLEN-N25AB1 (0771208)
Zedaro ORGSTRIPR-12.00R0.50-CUSTOMLEN-N25AB1 (0771208)
Couldn't load pickup availability
Zedaro UID: 0771208
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro ORGSTRIPR-12.00R0.50-CUSTOMLEN-N25AB1 | |
| EDP # | 0771208 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) | |
| Weight (1 pc.) | 4.0 oz | 125 g |
| Cutting Diameter | 0.4724" | 12.000 mm |
| Corner Radius | 0.0197" | 0.500 mm |
| Application | General Milling <20k RPM (Striper) | |
| Form | R-TORUS | |
| Shank Diameter (h6) | 0.5000" | 12.700 mm |
| Cutting Edges | 6 | |
| Tolerance Class | h7 | |
| Length of Cut | 0.4724" | 12.000 mm |
| Overall Length | 2.5000" | 63.500 mm |
| Reach | 1.0000" | 25.400 mm |
| Minimum Extension | 1.1969" | 30.400 mm |
| Maximum Extension | 1.5000" | 38.100 mm |
Product Features:
- The 'Orange' line of tooling is designed specifically for cutting nickel-based high temperature superalloys.
- The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).
- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- The code 'HAW' refers to the bird species 'Hawk'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
