Ceratizit N.RD.1,5.30°.Z2.HA.EL15 DPA72S CoreLine - Micro Ball-nosed End Mills - 52804159 (0771287)
Ceratizit N.RD.1,5.30°.Z2.HA.EL15 DPA72S CoreLine - Micro Ball-nosed End Mills - 52804159 (0771287)
Couldn't load pickup availability
Ceratizit Article Number: 52804159
Ceratizit Material Number: 5280415900
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit N.RD.1,5.30°.Z2.HA.EL15 DPA72S CoreLine - Micro Ball-nosed End Mills - 52804159 | |
| EDP # | 0771287 | |
| Weight (1 pc.) | 1.0 oz | 28.0 g |

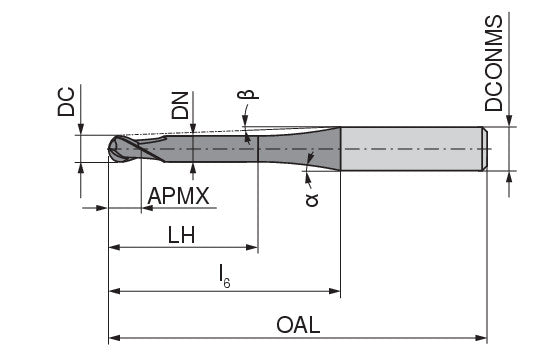

| Cutting diameter / DC ±0,01 mm | 0.0591" | 1.500 mm |
| Depth of cut maximum / APMX | 0.0591" | 1.500 mm |
| Neck Diameter / DN | 0.0472" | 1.200 mm |
| Head length / LH | 0.5906" | 15.000 mm |
| Alpha | 10.2000" | 259.080 mm |
| L6 | 1.4094" | 35.800 mm |
| Beta | 4.0000" | 101.600 mm |
| Protruding length / LPR | 1.4134" | 35.900 mm |
| Overall length / OAL | 3.1496" | 80.000 mm |
| Mounting spigot diameter / DCONMS h5 | 0.2362" | 6.000 mm |
| Peripheral effective cutting edge count / ZEFP | 2.0000" | 50.800 mm |
| Coating name / Grade (Ceratizit) / COATN | DPA72S | |
| Product-Carbon-Footprint | F | |
| Machining process - Main Application | Form milling | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
