Ceratizit N.TO.0,5.30°.Z2.R0,1.HA.EL2,5 DPA72S CoreLine - Micro Torus Cutters - 52806056 (0771311)
Ceratizit N.TO.0,5.30°.Z2.R0,1.HA.EL2,5 DPA72S CoreLine - Micro Torus Cutters - 52806056 (0771311)
Couldn't load pickup availability
Ceratizit Article Number: 52806056
Ceratizit Material Number: 5280605600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

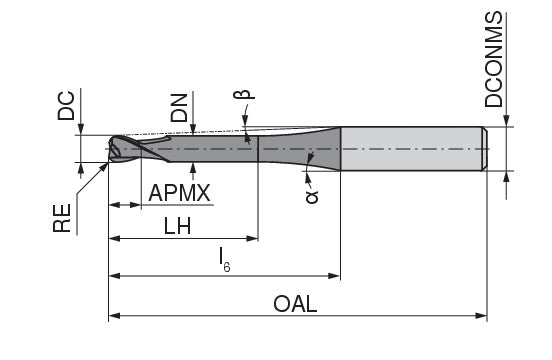

| Properties | ||
|---|---|---|
| Name | Ceratizit N.TO.0,5.30°.Z2.R0,1.HA.EL2,5 DPA72S CoreLine - Micro Torus Cutters - 52806056 | |
| EDP # | 0771311 | |
| Weight (1 pc.) | 1.0 oz | 35.4 g |
| Cutting diameter / DC ±0,01 mm | 0.0197" | 0.500 mm |
| Corner radius / RE ±0,005 | 0.0039" | 0.100 mm |
| Depth of cut maximum / APMX | 0.0197" | 0.500 mm |
| Neck Diameter / DN | 0.0157" | 0.400 mm |
| Head length / LH | 0.0984" | 2.500 mm |
| L6 | 0.5276" | 13.400 mm |
| Protruding length / LPR | 0.5315" | 13.500 mm |
| Overall length / OAL | 3.1496" | 80.000 mm |
| Alpha | 15.0000" | 381.000 mm |
| Beta | 12.0000" | 304.800 mm |
| Mounting spigot diameter / DCONMS h5 | 0.2362" | 6.000 mm |
| Peripheral effective cutting edge count / ZEFP | 2.0000" | 50.800 mm |
| Coating name / Grade (Ceratizit) / COATN | DPA72S | |
| Product-Carbon-Footprint | F | |
| Machining process - Main Application | Form milling | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
