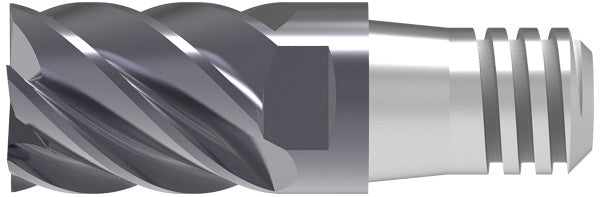

Ceratizit MUC-N.SC.10,0.49°.Z6.KLG8 TI1100 CoreLine Finishing Milling Cutters MultiChange 52863100 (0771358)
Ceratizit MUC-N.SC.10,0.49°.Z6.KLG8 TI1100 CoreLine Finishing Milling Cutters MultiChange 52863100 (0771358)
Couldn't load pickup availability
Ceratizit Article Number: 52863100
Ceratizit Material Number: 5286310000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MUC-N.SC.10,0.49°.Z6.KLG8 TI1100 CoreLine Finishing Milling Cutters MultiChange 52863100 | |
| EDP # | 0771358 | |
| Weight (1 pc.) | 1.0 oz | 29.4 g |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Peripheral milling | |

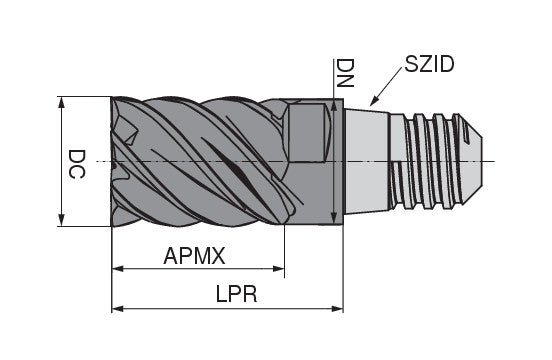

| Cutting diameter / DC | 0.3937" | 10.000 mm |
| nominal size / SZID | 8.0000" | 203.200 mm |
| Depth of cut maximum / APMX | 0.4921" | 12.500 mm |
| Neck Diameter / DN | 0.3858" | 9.800 mm |
| Protruding length / LPR ±0,02 | 0.7087" | 18.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Torque maximum / TQX | 12.5 Nm | |
| Drive size / DRVS | 0.3150" | 8.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti1100 | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
