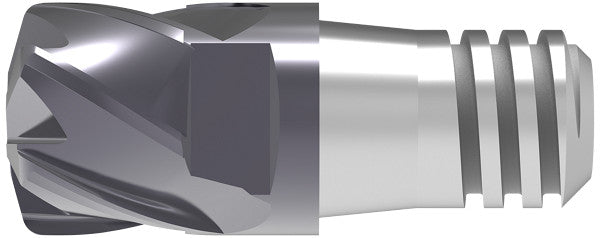

Ceratizit MUC-N.H-HV.12,0.30°.Z6.KLG10.IK TI1100 CoreLine High-feed Cutters MultiChange 52864120 (0771364)
Ceratizit MUC-N.H-HV.12,0.30°.Z6.KLG10.IK TI1100 CoreLine High-feed Cutters MultiChange 52864120 (0771364)
Couldn't load pickup availability
Ceratizit Article Number: 52864120
Ceratizit Material Number: 5286412000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MUC-N.H-HV.12,0.30°.Z6.KLG10.IK TI1100 CoreLine High-feed Cutters MultiChange 52864120 | |
| EDP # | 0771364 | |
| Weight (1 pc.) | 1.0 oz | 38.2 g |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Angled ramping | |

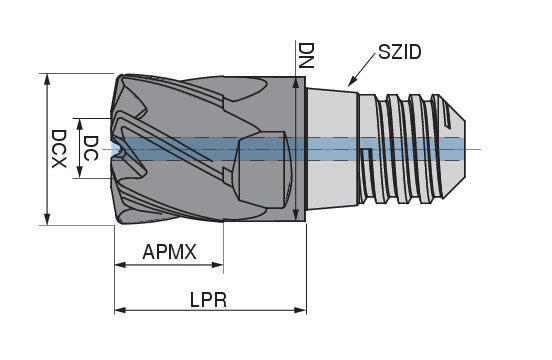

| Cutting diameter / DC | 0.2362" | 6.000 mm |
| Cutting diameter maximum / DCX | 0.4724" | 12.000 mm |
| Corner radius / RE | 0.0394" | 1.000 mm |
| nominal size / SZID | 10.0000" | 254.000 mm |
| Depth of cut maximum / APMX | 0.3543" | 9.000 mm |
| Neck Diameter / DN | 0.4646" | 11.800 mm |
| Protruding length / LPR ±0,02 | 0.6299" | 16.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Torque maximum / TQX | 15 Nm | |
| Drive size / DRVS | 0.3937" | 10.000 mm |
| 3D radius | 0.0394" | 1.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti1100 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
