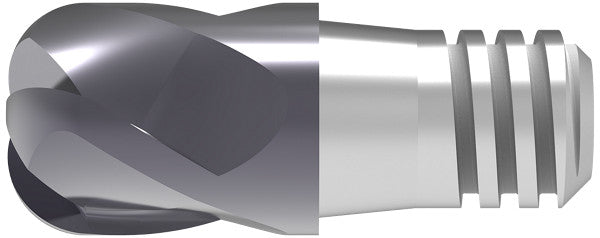

Ceratizit MUC-N.TO.10,0.30°.Z4.R3,0.KLG8 TI1100 CoreLine Torus Cutters MultiChange 52865103 (0771370)
Ceratizit MUC-N.TO.10,0.30°.Z4.R3,0.KLG8 TI1100 CoreLine Torus Cutters MultiChange 52865103 (0771370)
Couldn't load pickup availability
Ceratizit Article Number: 52865103
Ceratizit Material Number: 5286510300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

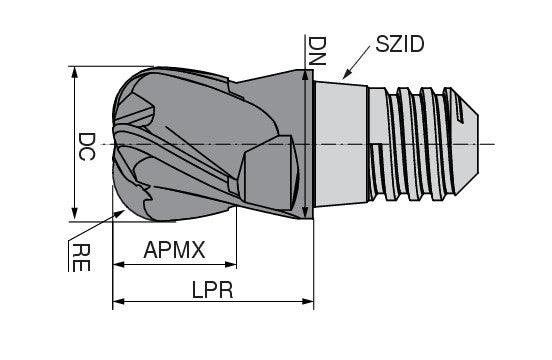

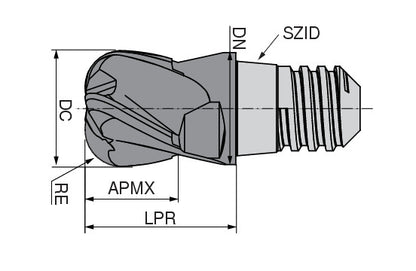

| Properties | ||
|---|---|---|
| Name | Ceratizit MUC-N.TO.10,0.30°.Z4.R3,0.KLG8 TI1100 CoreLine Torus Cutters MultiChange 52865103 | |
| EDP # | 0771370 | |
| Weight (1 pc.) | 1.0 oz | 24.2 g |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Form milling | |
| Cutting diameter / DC | 0.3937" | 10.000 mm |
| Corner radius / RE | 0.1181" | 3.000 mm |
| nominal size / SZID | 8.0000" | 203.200 mm |
| Depth of cut maximum / APMX | 0.2953" | 7.500 mm |
| Neck Diameter / DN | 0.3858" | 9.800 mm |
| Protruding length / LPR ±0,02 | 0.5118" | 13.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4.0000" | 101.600 mm |
| Torque maximum / TQX | 12.5 Nm | |
| Drive size / DRVS | 0.3150" | 8.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti1100 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
