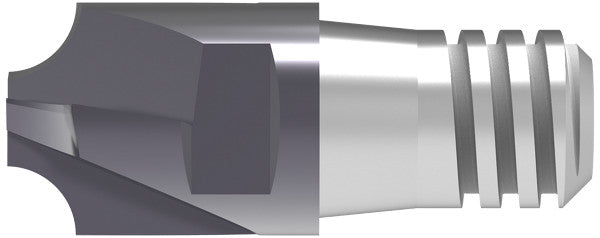

Ceratizit MUC-N.VR.10,0.20°.Z4.R1,5.KLG8 TI1100 CoreLine Quarter Round Milling Cutters MultiChange 52869100 (0771392)
Ceratizit MUC-N.VR.10,0.20°.Z4.R1,5.KLG8 TI1100 CoreLine Quarter Round Milling Cutters MultiChange 52869100 (0771392)
Couldn't load pickup availability
Ceratizit Article Number: 52869100
Ceratizit Material Number: 5286910000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MUC-N.VR.10,0.20°.Z4.R1,5.KLG8 TI1100 CoreLine Quarter Round Milling Cutters MultiChange 52869100 | |
| EDP # | 0771392 | |
| Weight (1 pc.) | 1.0 oz | 23.2 g |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Profile milling (concave) | |

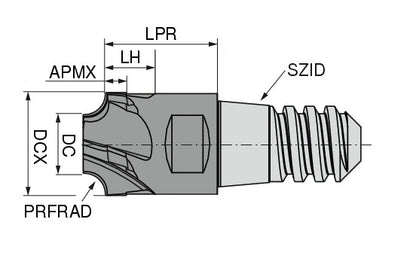

| Cutting diameter / DC | 0.2610" | 6.630 mm |
| Cutting diameter maximum / DCX | 0.3937" | 10.000 mm |
| nominal size / SZID | 8.0000" | 203.200 mm |
| Profile radius / PRFRAD ±0,03 | 0.0591" | 1.500 mm |
| Depth of cut maximum / APMX | 0.1575" | 4.000 mm |
| Protruding length / LPR ±0,02 | 0.5118" | 13.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4.0000" | 101.600 mm |
| Torque maximum / TQX | 12.5 Nm | |
| Head length / LH | 0.2559" | 6.500 mm |
| Drive size / DRVS | 0.3150" | 8.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti1100 | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
