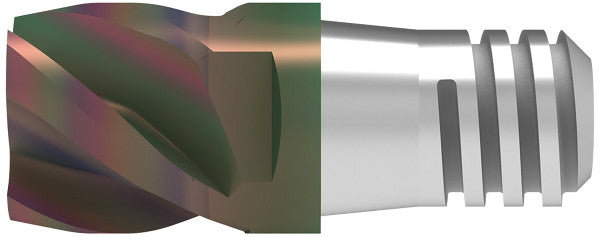

Ceratizit MUC.PCR-ALU.H-SA.20,0.41°.Z4.KLG16 DLC CoreLine Shoulder Mills MultiChange 5287220000 (0771419)
Ceratizit MUC.PCR-ALU.H-SA.20,0.41°.Z4.KLG16 DLC CoreLine Shoulder Mills MultiChange 5287220000 (0771419)
Couldn't load pickup availability
Ceratizit Article Number: 5287220000
Ceratizit Material Number: 5287220000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MUC.PCR-ALU.H-SA.20,0.41°.Z4.KLG16 DLC CoreLine Shoulder Mills MultiChange 5287220000 | |
| EDP # | 0771419 | |
| Weight (1 pc.) | 5.0 oz | 138 g |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Axial plunging | |
| Cutting diameter / DC | 0.7874" | 20.000 mm |
| Corner radius / RE | 0.0197" | 0.500 mm |
| nominal size / SZID | 16.0000" | 406.400 mm |
| Depth of cut maximum / APMX | 0.5906" | 15.000 mm |
| Neck Diameter / DN | 0.7795" | 19.800 mm |
| Protruding length / LPR ±0,02 | 0.9843" | 25.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4.0000" | 101.600 mm |
| Torque maximum / TQX | 25 Nm | |
| Drive size / DRVS | 0.6299" | 16.000 mm |
| Coating name / Grade (Ceratizit) / COATN | DLC | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
