Ceratizit MINIMILL.18.0,84.1°.Z3 CWX500 CoreLine - Milling Insert For circlip Grooves - 53006280 (0771512)
Ceratizit MINIMILL.18.0,84.1°.Z3 CWX500 CoreLine - Milling Insert For circlip Grooves - 53006280 (0771512)
Couldn't load pickup availability
Ceratizit Article Number: 53006280
Ceratizit Material Number: 5300628000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

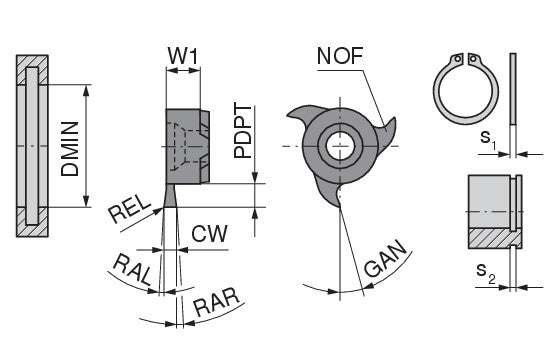

| Properties | ||
|---|---|---|
| Name | Ceratizit MINIMILL.18.0,84.1°.Z3 CWX500 CoreLine - Milling Insert For circlip Grooves - 53006280 | |
| EDP # | 0771512 | |
| Weight (1 pc.) | 0.3 oz | 7.5 g |
| Size | 18.0000" | 457.200 mm |
| S2 - CIRCLIP H13 | 0.0315" | 0.800 mm |
| Cutting width / CW -0.02 | 0.0331" | 0.840 mm |
| S1 - CIRCLIP | 0.0276" | 0.700 mm |
| Minimum bore diameter / DMIN | 0.7087" | 18.000 mm |
| Profile depth insert / PDPT | 0.0669" | 1.700 mm |
| Insert width / W1 | 0.2264" | 5.750 mm |
| Flute count / NOF | 3.0000" | 76.200 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | F | |
| Machining process - Main Application | Circlip grooves | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
