Ceratizit MINIMILL.28/32.2,5.8,5.Z3 CWX500 CoreLine - Milling Insert For Groove Milling (specialist For aluminum) - 53007925 (0771588)
Ceratizit MINIMILL.28/32.2,5.8,5.Z3 CWX500 CoreLine - Milling Insert For Groove Milling (specialist For aluminum) - 53007925 (0771588)
Couldn't load pickup availability
Ceratizit Article Number: 53007925
Ceratizit Material Number: 5300792500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

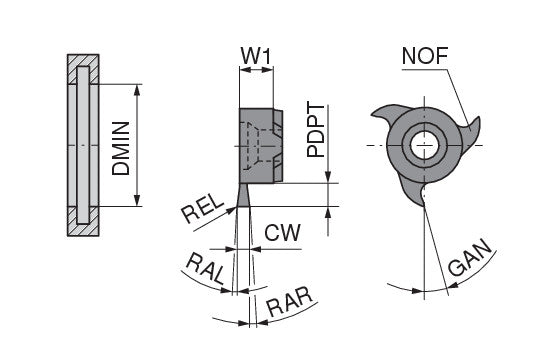

| Properties | ||
|---|---|---|
| Name | Ceratizit MINIMILL.28/32.2,5.8,5.Z3 CWX500 CoreLine - Milling Insert For Groove Milling | |
| EDP # | 0771588 | |
| Weight (1 pc.) | 1.0 oz | 18.2 g |
| Size | 28.0000" | 711.200 mm |
| Cutting width / CW 0.02 | 0.0984" | 2.500 mm |
| Flute count / NOF | 3.0000" | 76.200 mm |
| Minimum bore diameter / DMIN | 1.2598" | 32.000 mm |
| Corner radius left hand / REL | 0.0079" | 0.200 mm |
| Profile depth insert / PDPT | 0.3346" | 8.500 mm |
| Insert width / W1 | 0.2559" | 6.500 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | F | |
| Machining process - Main Application | Slot milling | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
