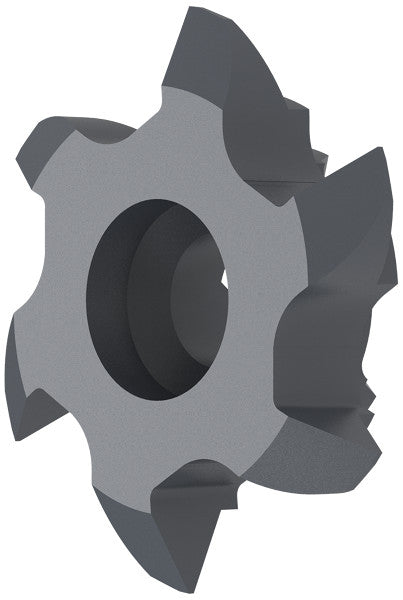

Ceratizit MINIMILL.10.M1,5-2,75.1,67.Z6 CWX500 CoreLine Milling Insert For Internal Thread Milling Partial Profile 53010027 (0771632)
Ceratizit MINIMILL.10.M1,5-2,75.1,67.Z6 CWX500 CoreLine Milling Insert For Internal Thread Milling Partial Profile 53010027 (0771632)
Couldn't load pickup availability
Ceratizit Article Number: 53010027
Ceratizit Material Number: 5301002700
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MINIMILL.10.M1,5-2,75.1,67.Z6 CWX500 CoreLine Milling Insert For Internal Thread Milling Partial Profile 53010027 | |
| EDP # | 0771632 | |
| Weight (1 pc.) | 0.2 oz | 6.3 g |
| Product-Carbon-Footprint | F | |
| Machining process - Main Application | Internal thread, right / left | |
| Size | 10.0000" | 254.000 mm |
| Insert length / INSL | 0.4331" | 11.000 mm |
| Flute count / NOF | 6.0000" | 152.400 mm |
| Thread - minimum | M16 | |
| Thread pitch range / TP | 1.5 - 2.75 | |
| Minimum bore diameter / DMIN | 0.4331" | 11.000 mm |
| Central flat / CF | 0.0075" | 0.190 mm |
| Profile distance ex / PDX | 0.0787" | 2.000 mm |
| Profile depth insert / PDPT | 0.0657" | 1.670 mm |
| Insert width / W1 | 0.1260" | 3.200 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
