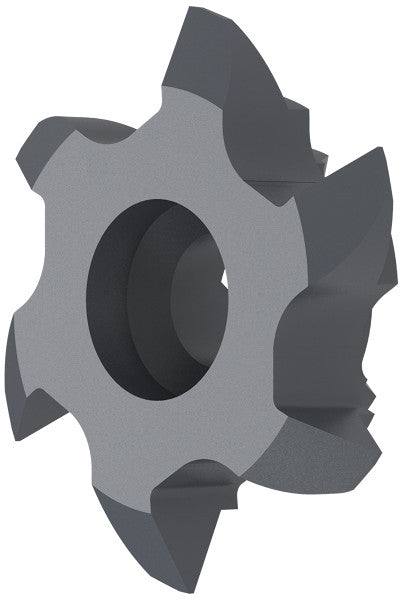

Ceratizit MINIMILL.28.M2,5-5,0.2,93.Z6 CWX500 CoreLine Milling Insert For Internal Thread Milling Partial Profile 53010850 (0771663)
Ceratizit MINIMILL.28.M2,5-5,0.2,93.Z6 CWX500 CoreLine Milling Insert For Internal Thread Milling Partial Profile 53010850 (0771663)
Couldn't load pickup availability
Ceratizit Article Number: 53010850
Ceratizit Material Number: 5301085000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MINIMILL.28.M2,5-5,0.2,93.Z6 CWX500 CoreLine Milling Insert For Internal Thread Milling Partial Profile 53010850 | |
| EDP # | 0771663 | |
| Weight (1 pc.) | 1.0 oz | 31.5 g |
| Product-Carbon-Footprint | F | |
| Machining process - Main Application | Internal thread, right / left | |
| Size | 28.0000" | 711.200 mm |
| Flute count / NOF | 6.0000" | 152.400 mm |
| Thread - minimum | M36 | |
| Thread pitch range / TP | 2.5 - 5.0 | |
| Minimum bore diameter / DMIN | 1.0906" | 27.700 mm |
| Central flat / CF | 0.0150" | 0.380 mm |
| Profile distance ex / PDX | 0.0906" | 2.300 mm |
| Profile depth insert / PDPT | 0.1154" | 2.930 mm |
| Insert width / W1 | 0.2402" | 6.100 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
