Description
Ceratizit Article Number: 7028272600
Ceratizit Material Number: 14851133
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

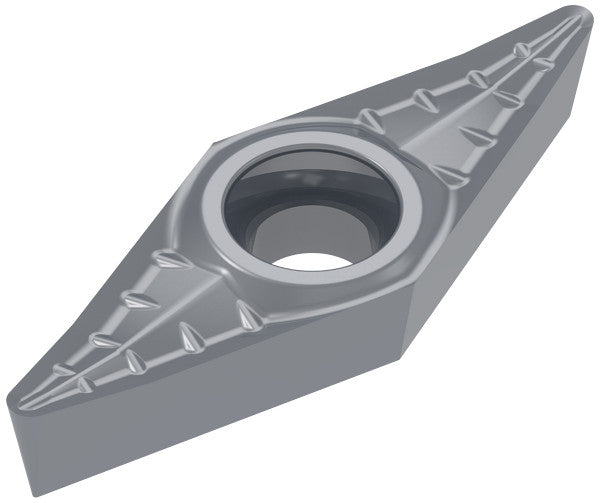

| Name | Ceratizit VCGT 160402FN-25P CTPX710 7028272600 | |
| EDP # | 0771806 | |
| Weight (1 pc.) | 0.3 oz | 7.7 g |
| Product-Carbon-Footprint | C | |
| designation | 160402FN | |

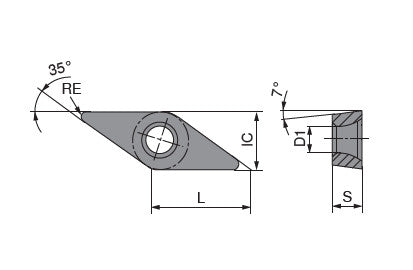

| Corner radius / RE | 0.0787" | 2.000 mm |
| Cutting edge length / L | 6.5354" | 166.000 mm |
| Insert thickness / S | 18.7402" | 476.000 mm |
| Fixing hole diameter / D1 | 1.7323" | 44.000 mm |
| Inscribed circle diameter / IC | 37.4803" | 952.000 mm |
| Insert index count / NOI | 2 | |
| Chip breaker (Ceratizit) / CBMD | -25P | |
| Coating name / Grade (Ceratizit) / COATN | CTPX710 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
