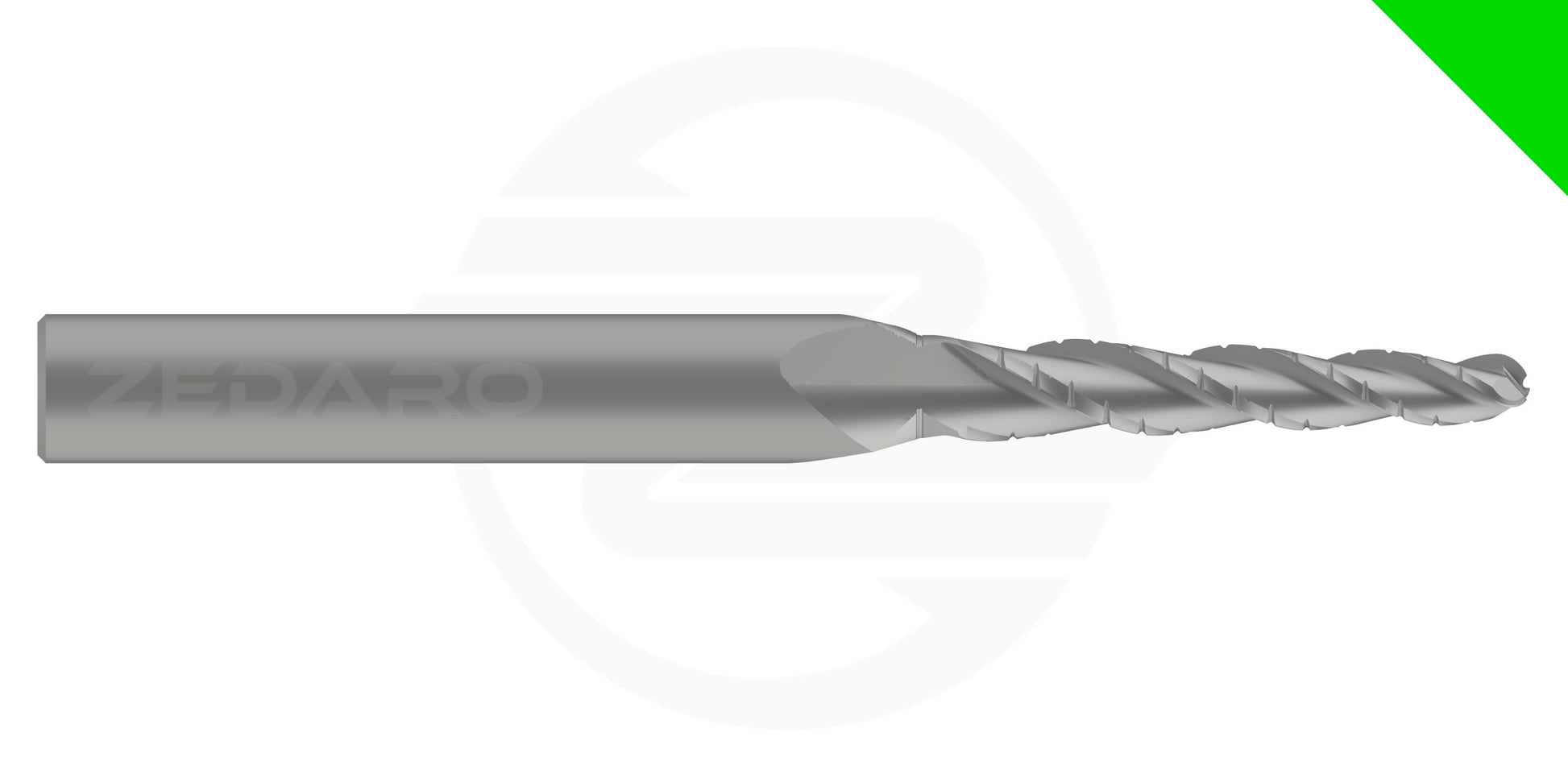

Zedaro GRNCLIMBR-3.000V24.0-999.MAS27.9-G25CG1 (0772239)
Zedaro GRNCLIMBR-3.000V24.0-999.MAS27.9-G25CG1 (0772239)
Couldn't load pickup availability
Zedaro UID: 0772239
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNCLIMBR-3.000V24.0-999.MAS27.9-G25CG1 | |
| EDP # | 0772239 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 1.0 oz | 31.0 g |
| Cutting Diameter | 0.1181" | 3.000 mm |
| Cutting Length | 0.9449" | 24.000 mm |
| Application | General Tip Finish Flank Roughing (Climber) | |
| Form | Tapered Ball | |
| Shank Diameter (h5) | 0.2500" | 6.350 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.9449" | 24.000 mm |
| Overall Length | 2.5000" | 63.500 mm |
| Reach | (No flank reach limit) | |
| Minimum Extension | 1.0984" | 27.900 mm |
| Maximum Extension | 2.0000" | 50.800 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Climber' line is a unique style which has an accurate tip for finishing with a capable flank for clearing the way as the tool cuts in levels from bottom up.
- 'V' form tools are excellent for milling in confined areas and have optimal strength and stiffness properties for deep slotting and flanking. Typically combined with 5-axis simultaneous tool paths in the aerospace industry and for other complex forms, they are also commonly used on 3-axis machines for generating drafted walls; especially in the mold making industry.
- The code 'MAS' refers to the bird species 'Masked Duck'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
