Description
Zedaro UID: 0772285
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

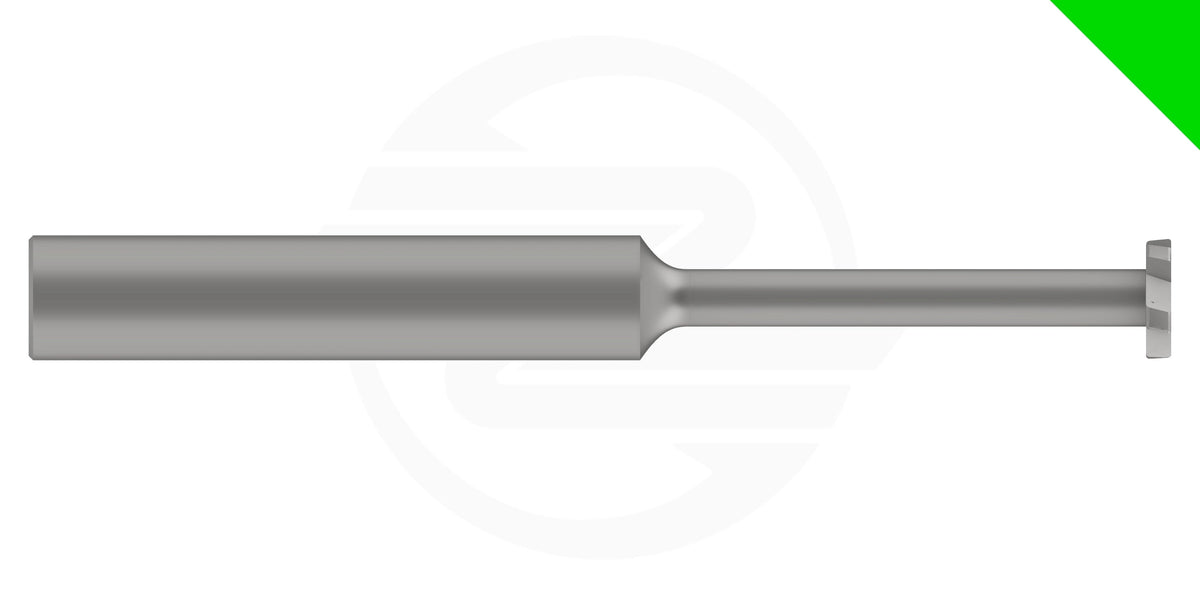

| Name | Zedaro GRNDRIFTR-19.96S4.00-76.0FLA85.0-U72CG1 | |
| EDP # | 0772285 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 32.0 oz | 897 g |
| Cutting Diameter | 0.7858" | 19.960 mm |
| Slot Thickness | 0.1575" | 4.000 mm |
| Application | General T-Slot Milling (Drifter) | |
| Form | Slot Mill | |
| Shank Diameter (h5) | 0.7874" | 20.000 mm |
| Cutting Edges | 4 | |
| Length of Cut | 0.1575" | 4.000 mm |
| Overall Length | 7.2000" | 182.880 mm |
| Reach | 2.9921" | 76.000 mm |
| Minimum Extension | 3.3465" | 85.000 mm |
| Maximum Extension | 5.6299" | 143.000 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Drifter' line is for T-slotting; generating lateral slots/grooves in faces using the tool flank.
- 'S' form tools are for slotting and grooving, using the tool flank exclusively to produce geometry.
- The code 'FLA' refers to the bird species 'Flamingo'.
