Description
Ceratizit Article Number: 73016525
Ceratizit Material Number: 7301652500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ULTRAMINI.R050.5-25.C.IK K10F TIALN UltraMini Inserts For Internal Turning And Profiling 73016525 | |
| EDP # | 0772531 | |
| Weight (1 pc.) | 0.3 oz | 9.2 g |

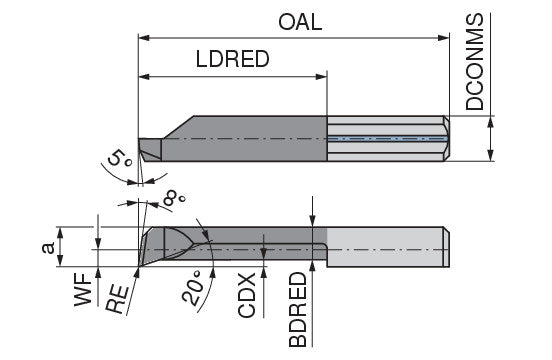

| Mounting spigot diameter / DCONMS h6 | 0.1969" | 5.000 mm |
| Functional width / WF | 0.7480" | 19.000 mm |
| Minimum bore diameter / DMIN | 0.1969" | 5.000 mm |
| A | 1.7323" | 44.000 mm |
| Overall length / OAL | 1.5748" | 40.000 mm |
| Reduced body diameter length / LDRED | 0.9843" | 25.000 mm |
| Cutting depth maximum / CDX | 0.1969" | 5.000 mm |
| Body diameter, reduced / BDRED | 1.4961" | 38.000 mm |
| Corner radius / RE | 0.0787" | 2.000 mm |
| Coating name / Grade (Ceratizit) / COATN | TiAlN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
