Ceratizit ULTRAMINI.RX050.5-30R10.IK DPX77S CoreLine Inserts For Internal Turning 73000553 (0772556)
Ceratizit ULTRAMINI.RX050.5-30R10.IK DPX77S CoreLine Inserts For Internal Turning 73000553 (0772556)
Couldn't load pickup availability
Ceratizit Article Number: 73000553
Ceratizit Material Number: 7300055300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

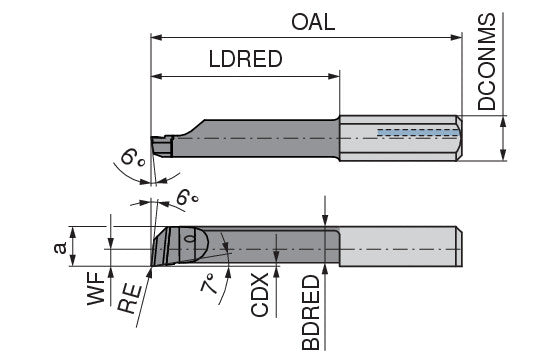

| Properties | ||
|---|---|---|
| Name | Ceratizit ULTRAMINI.RX050.5-30R10.IK DPX77S CoreLine Inserts For Internal Turning 73000553 | |
| EDP # | 0772556 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Productsystem | UltraMini | |
| Machining process - Main Application | Internal drilling and turning | |
| Mounting spigot diameter / DCONMS h6 | 0.1969" | 5.000 mm |
| Functional width / WF | 0.0827" | 2.100 mm |
| Minimum bore diameter / DMIN | 0.1969" | 5.000 mm |
| A | 0.1811" | 4.600 mm |
| Overall length / OAL | 1.7717" | 45.000 mm |
| Reduced body diameter length / LDRED | 1.1811" | 30.000 mm |
| Cutting depth maximum / CDX | 0.0118" | 0.300 mm |
| Body diameter, reduced / BDRED | 0.1594" | 4.050 mm |
| Corner radius / RE | 0.0039" | 0.100 mm |
| Coating name / Grade (Ceratizit) / COATN | DPX77S | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
