Ceratizit ULTRAMINI.R010.2508-10.IK K10F TIALN CoreLine Inserts For Axial Grooving 73052577 (0773248)
Ceratizit ULTRAMINI.R010.2508-10.IK K10F TIALN CoreLine Inserts For Axial Grooving 73052577 (0773248)
Couldn't load pickup availability
Ceratizit Article Number: 73052577
Ceratizit Material Number: 7305257700
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

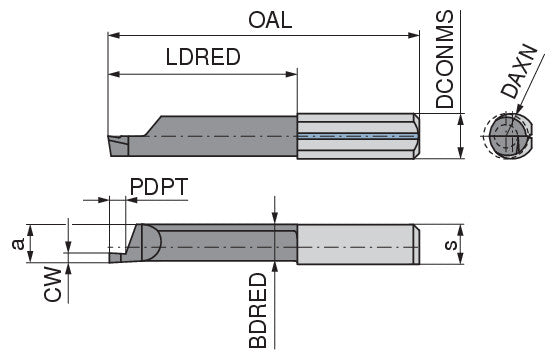

| Properties | ||
|---|---|---|
| Name | Ceratizit ULTRAMINI.R010.2508-10.IK K10F TIALN CoreLine Inserts For Axial Grooving 73052577 | |
| EDP # | 0773248 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Productsystem | UltraMini | |
| Machining process - Main Application | Axial grooving | |
| Mounting spigot diameter / DCONMS h6 | 0.2756" | 7.000 mm |
| A | 0.2323" | 5.900 mm |
| Overall length / OAL | 1.0236" | 26.000 mm |
| Reduced body diameter length / LDRED | 0.4331" | 11.000 mm |
| Body diameter, reduced / BDRED | 0.2205" | 5.600 mm |
| Axial groove outside diameter minimum / DAXN | 0.3150" | 8.000 mm |
| Cutting width / CW | 0.0984" | 2.500 mm |
| Insert thickness (S) | 0.2480" | 6.300 mm |
| Profile depth insert / PDPT | 0.1378" | 3.500 mm |
| Coating name / Grade (Ceratizit) / COATN | TiAlN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
