Description
Ceratizit Article Number: 73100544
Ceratizit Material Number: 7310054400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

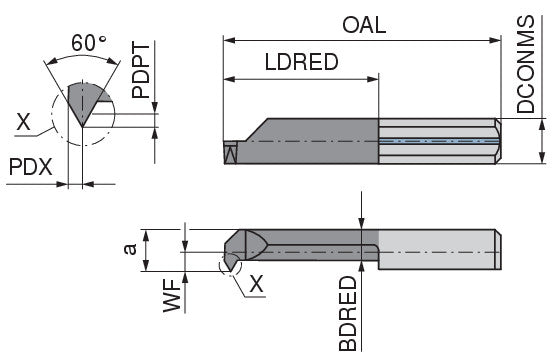

| Properties | ||
|---|---|---|
| Name | Ceratizit ULTRAMINI.R005.0510-20.IK.K10F TIN UltraMini Inserts For Internal Threading | |
| EDP # | 0773463 | |
| Weight (1 pc.) | 0.3 oz | 9.8 g |
| Thread pitch / TP | 0.0394" | 1.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.1969" | 5.000 mm |
| Functional width / WF | 0.0748" | 1.900 mm |
| Minimum bore diameter / DMIN | 0.1890" | 4.800 mm |
| A | 0.1732" | 4.400 mm |
| Overall length / OAL | 1.3780" | 35.000 mm |
| Reduced body diameter length / LDRED | 0.7874" | 20.000 mm |
| Body diameter, reduced / BDRED | 0.1299" | 3.300 mm |
| Thread pitch range / TP | 0.0000" - 0.0492" | 0.000 - 1.250 mm |
| Profile distance ex / PDX | 0.0217" | 0.550 mm |
| Profile depth insert / PDPT | 0.0217" | 0.550 mm |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
