Ceratizit ULTRAMINI.L004.0105-10.IK K10F TIALN CoreLine Inserts For Internal Thread Turning (partial profile) 73103509 (0773492)
Ceratizit ULTRAMINI.L004.0105-10.IK K10F TIALN CoreLine Inserts For Internal Thread Turning (partial profile) 73103509 (0773492)
Couldn't load pickup availability
Ceratizit Article Number: 73103509
Ceratizit Material Number: 7310350900
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

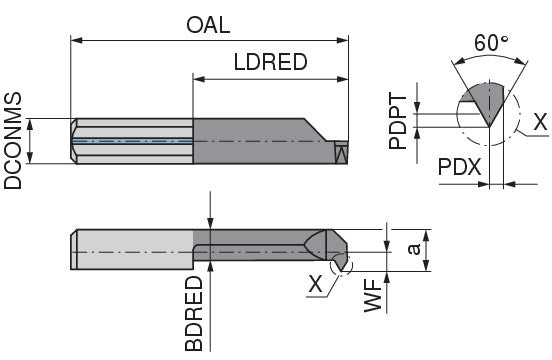

| Properties | ||
|---|---|---|
| Name | Ceratizit ULTRAMINI.L004.0105-10.IK K10F TIALN CoreLine Inserts For Internal Thread Turning | |
| EDP # | 0773492 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Productsystem | UltraMini | |
| Machining process - Main Application | Internal thread | |
| Thread pitch / TP | 0.0197" | 0.500 mm |
| Mounting spigot diameter / DCONMS h6 | 0.1575" | 4.000 mm |
| Functional width / WF | 0.0394" | 1.000 mm |
| Minimum bore diameter / DMIN | 0.1260" | 3.200 mm |
| A | 0.1181" | 3.000 mm |
| Overall length / OAL | 0.9449" | 24.000 mm |
| Reduced body diameter length / LDRED | 0.3937" | 10.000 mm |
| Body diameter, reduced / BDRED | 0.0906" | 2.300 mm |
| Thread pitch range / TP | 0.5 - 0.75 | |
| Profile distance ex / PDX | 0.0173" | 0.440 mm |
| Profile depth insert / PDPT | 0.0106" | 0.270 mm |
| Coating name / Grade (Ceratizit) / COATN | TiAlN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
