Description
Ceratizit Article Number: 5360704100
Ceratizit Material Number: W0238040200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 3A0238-04000.0070.R02.R02000.HA.B270 AluLine Ball Nosed Cutter 5360704100 | |
| EDP # | 0774040 | |
| Weight (1 pc.) | 0.3 oz | 8.9 g |

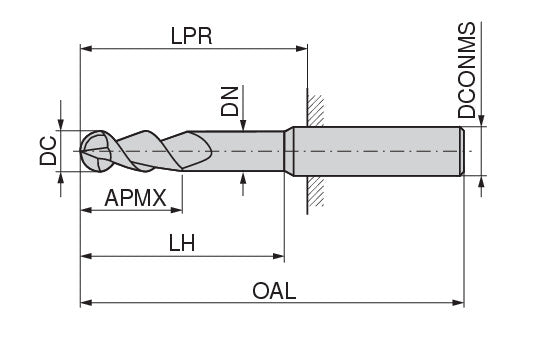

| Cutting diameter / DC f8 | 0.1575" | 4.000 mm |
| Depth of cut maximum / APMX | 0.2756" | 7.000 mm |
| Neck Diameter / DN | 0.1457" | 3.700 mm |
| Head length / LH | 0.6693" | 17.000 mm |
| Protruding length / LPR | 1.0236" | 26.000 mm |
| Overall length / OAL | 2.1260" | 54.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.1575" | 4.000 mm |
| Peripheral effective cutting edge count / ZEFP | 0.0787" | 2.000 mm |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
| Product-Carbon-Footprint | C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
