Description
Ceratizit Article Number: 50906005
Ceratizit Material Number: W0281005340
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

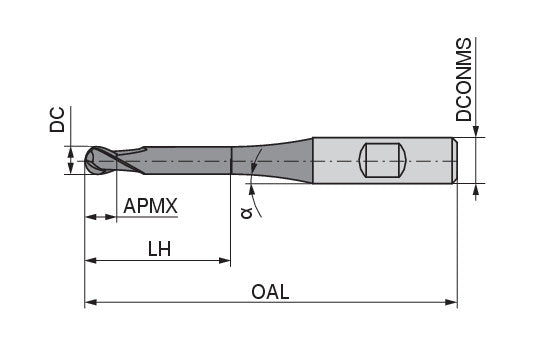

| Properties | ||
|---|---|---|
| Name | Ceratizit 3A0281-00500.0005.R02.R00250.HA.B550 Ball Nosed Cutter 50906005 | |
| EDP # | 0774442 | |
| Weight (1 pc.) | 0.2 oz | 6.2 g |
| Cutting diameter / DC | 0.0197" | 0.500 mm |
| Depth of cut maximum / APMX | 0.0197" | 0.500 mm |
| Head length / LH | 0.0315" | 0.800 mm |
| Protruding length / LPR | 0.4724" | 12.000 mm |
| Overall length / OAL | 1.5748" | 40.000 mm |
| Mounting spigot diameter / DCONMS h5 | 0.1575" | 4.000 mm |
| Alpha | 0.5906" | 15.000 mm |
| Peripheral effective cutting edge count / ZEFP | 0.0787" | 2.000 mm |
| Coating name / Grade (Ceratizit) / COATN | 39.3701" | 1000.000 mm |
| Product-Carbon-Footprint | C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
