Ceratizit 6A0603-07100.H7.0310.0670.R06.HA.B375 CoreLine NC Machine reamers, Sim. DIN 8093-A NC 100H 4043507100 (0775369)
Ceratizit 6A0603-07100.H7.0310.0670.R06.HA.B375 CoreLine NC Machine reamers, Sim. DIN 8093-A NC 100H 4043507100 (0775369)
Couldn't load pickup availability
Ceratizit Article Number: 4043507100
Ceratizit Material Number: W0603071070
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

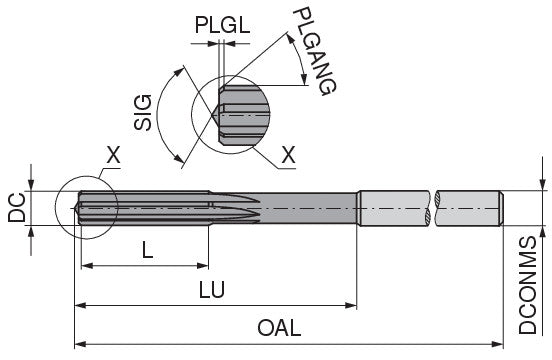

| Properties | ||
|---|---|---|
| Name | Ceratizit 6A0603-07100.H7.0310.0670.R06.HA.B375 CoreLine NC Machine reamers, Sim. DIN 8093-A NC 100H 4043507100 | |
| EDP # | 0775369 | |
| Product-Carbon-Footprint | C | |
| Cutting diameter / DC H7 | 0.2795" | 7.100 mm |
| Overall length / OAL | 4.2913" | 109.000 mm |
| Cutting edge length / L | 1.2205" | 31.000 mm |
| Usable length / LU | 2.6378" | 67.000 mm |
| Mounting spigot diameter / DCONMS h5 | 0.3150" | 8.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| Neck Diameter / DN | 0.2622" | 6.660 mm |
| Plug length / PLGL | 0.0236" | 0.600 mm |
| Coating name / Grade (Ceratizit) / COATN | TiAlSiN | |
| PLGANG / PLGANG | 45 ° | |
| Minimum Extension (DIN 6535 HA) | 2.7953" - 2.8740" | 71.000 - 73.000 mm |
Tool Form:
'H' form tools are intended for reaming; where they cannot generate a hole or cut laterally but use their lead-in and flank to improve pre-existing hole quality.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
