Description
Ceratizit Article Number: 4043511970
Ceratizit Material Number: W0603119770
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 6A0603-11970.H7.0440.0990.R06.HA.B375 CoreLine NC Machine reamers, Sim. DIN 8093-A NC 100H 4043511970 | |
| EDP # | 0775416 | |
| Weight (1 pc.) | 7.0 oz | 204 g |
| Product-Carbon-Footprint | C | |

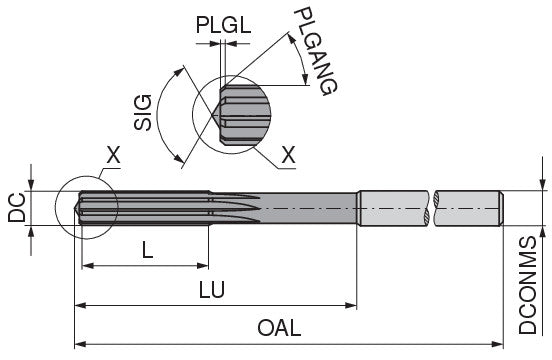

| Cutting diameter / DC H7 | 0.4713" | 11.970 mm |
| Overall length / OAL | 5.9055" | 150.000 mm |
| Cutting edge length / L | 1.7323" | 44.000 mm |
| Usable length / LU | 3.8976" | 99.000 mm |
| Mounting spigot diameter / DCONMS h5 | 0.4724" | 12.000 mm |
| Peripheral effective cutting edge count / ZEFP | 0.2362" | 6.000 mm |
| Neck Diameter / DN | 0.4567" | 11.600 mm |
| Plug length / PLGL | 0.0315" | 0.800 mm |
| Coating name / Grade (Ceratizit) / COATN | TiAlSiN | |
| PLGANG / PLGANG | 1.7717" | 45.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
