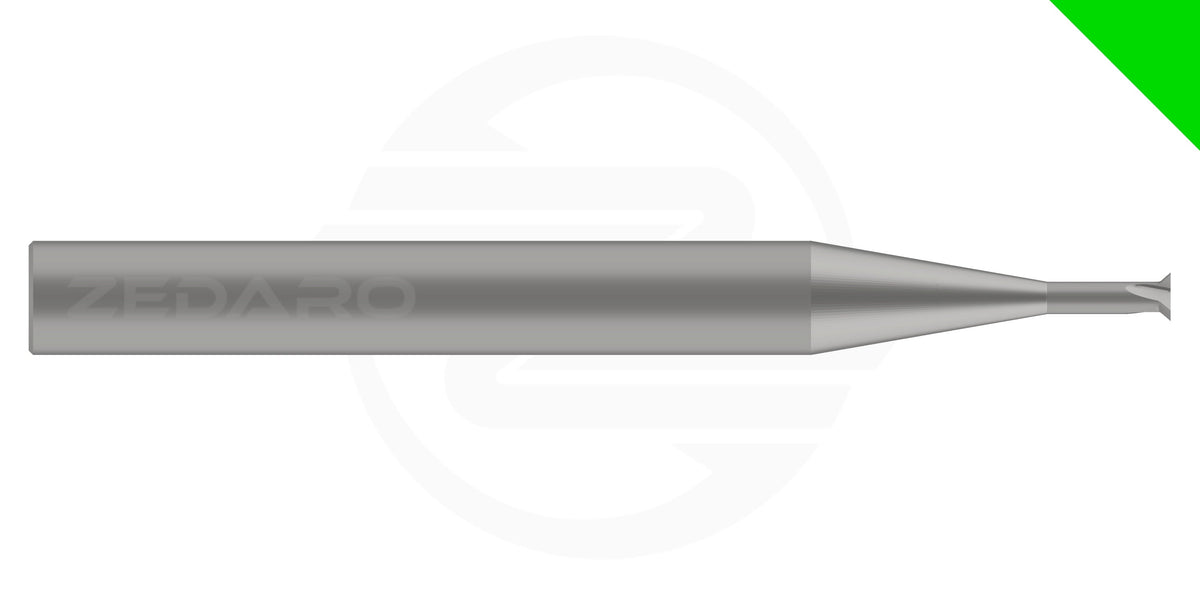

Zedaro GRNCRUISR-2.400Z0.30-BCKCHAMFR-G25AB1 (0775668)
Zedaro GRNCRUISR-2.400Z0.30-BCKCHAMFR-G25AB1 (0775668)
Couldn't load pickup availability
Zedaro UID: 0775668
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNCRUISR-2.400Z0.30-BCKCHAMFR-G25AB1 | |
| EDP # | 0775668 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 1.0 oz | 31.0 g |
| Gauge Diameter | 0.0945" | 2.400 mm |
| Gauge Distance (from tip) | 0.0118" | 0.300 mm |
| Application | Finish Flank Milling >20k RPM (Cruiser) | |
| Form | Contour / Profile | |
| Shank Diameter (h6) | 0.2500" | 6.350 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.0236" | 0.600 mm |
| Overall Length | 2.5000" | 63.500 mm |
| Reach | 0.2500" | 6.350 mm |
| Minimum Extension | 0.7874" | 20.000 mm |
| Maximum Extension | 2.0000" | 50.800 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Cruiser' line is a tight-tolerance 3D finishing tool which is intended for flanking; primarily using the side of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds above 20K rpm.
- 'Z' form tools comprise of all arbitrary forms which do not match any other form category. These may be drills, mills, etc. where the key feature is accuracy of form.
- This is a custom design which does not follow standard proportions.
