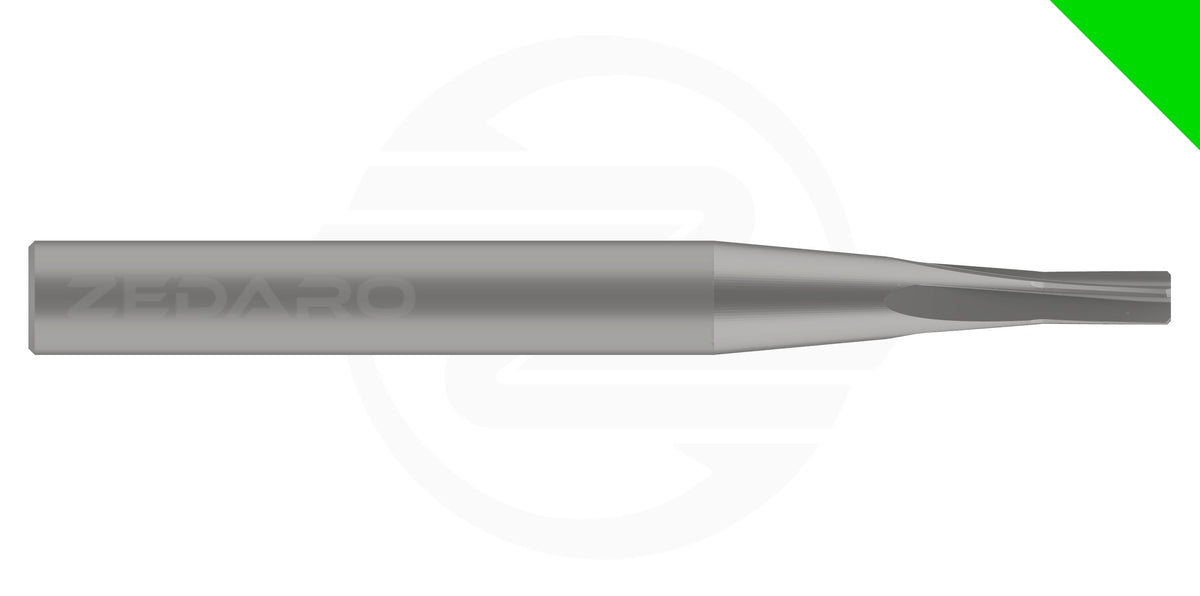

Zedaro GRNSIPPER-2.981H0.20-7.00FEK25.4-G25CG1 (0775672)
Zedaro GRNSIPPER-2.981H0.20-7.00FEK25.4-G25CG1 (0775672)
Quantity
Couldn't load pickup availability
Sign in to see pricing.
Technical Files
Drawings, DXF profiles and CAD models are available to approved
account holders.
Sign in or
request approval.
Shipping calculated at checkout.
Zedaro UID: 0775672
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNSIPPER-2.981H0.20-7.00FEK25.4-G25CG1 | |
| EDP # | 0775672 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 1.0 oz | 31.0 g |
| Cutting Diameter | 0.1174" | 2.981 mm |
| Tip Offset | 0.0079" | 0.200 mm |
| Application | General Reaming (Sipper) | |
| Form | Reamer | |
| Shank Diameter (h5) | 0.2500" | 6.350 mm |
| Cutting Edges | 4 | |
| Tolerance Class | h5 | |
| Length of Cut | 0.2756" | 7.000 mm |
| Overall Length | 2.5000" | 63.500 mm |
| Reach | 0.2756" | 7.000 mm |
| Minimum Extension | 1.0000" | 25.400 mm |
| Maximum Extension | 2.0000" | 50.800 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Sipper' line is for general purpose reaming.
- 'H' form tools are intended for reaming; where they cannot generate a hole or cut laterally but use their lead-in and flank to improve pre-existing hole quality.
- The code 'FEK' refers to the bird species 'Flicker'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
