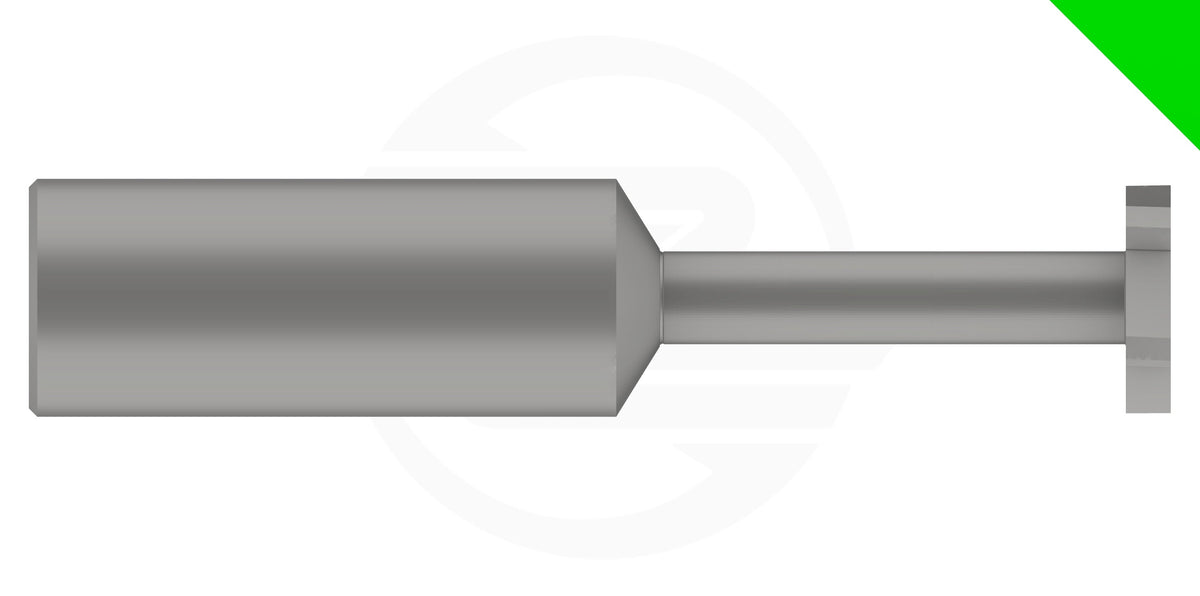

Zedaro GRNDRIFTR-15.80S3.00-33.0FLA37.0-Q30AB1 (0777216)
Zedaro GRNDRIFTR-15.80S3.00-33.0FLA37.0-Q30AB1 (0777216)
Quantity
Couldn't load pickup availability
Sign in to see pricing.
Technical Files
Drawings, DXF profiles and CAD models are available to approved
account holders.
Sign in or
request approval.
Shipping calculated at checkout.
Zedaro UID: 0777216
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNDRIFTR-15.80S3.00-33.0FLA37.0-Q30AB1 | |
| EDP # | 0777216 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 8.0 oz | 235 g |
| Cutting Diameter | 0.6220" | 15.800 mm |
| Slot Thickness | 0.1181" | 3.000 mm |
| Application | General T-Slot Milling (Drifter) | |
| Form | Slot Mill | |
| Shank Diameter (h6) | 0.6250" | 15.880 mm |
| Cutting Edges | 5 | |
| Tolerance Class | h7 | |
| Length of Cut | 0.1181" | 3.000 mm |
| Overall Length | 3.0000" | 76.200 mm |
| Reach | 1.2992" | 33.000 mm |
| Minimum Extension | 1.4567" | 37.000 mm |
| Maximum Extension | 1.7520" | 44.500 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Drifter' line is for T-slotting; generating lateral slots/grooves in faces using the tool flank.
- 'S' form tools are for slotting and grooving, using the tool flank exclusively to produce geometry.
- The code 'FLA' refers to the bird species 'Flamingo'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
