Description
Zedaro UID: 0777797
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

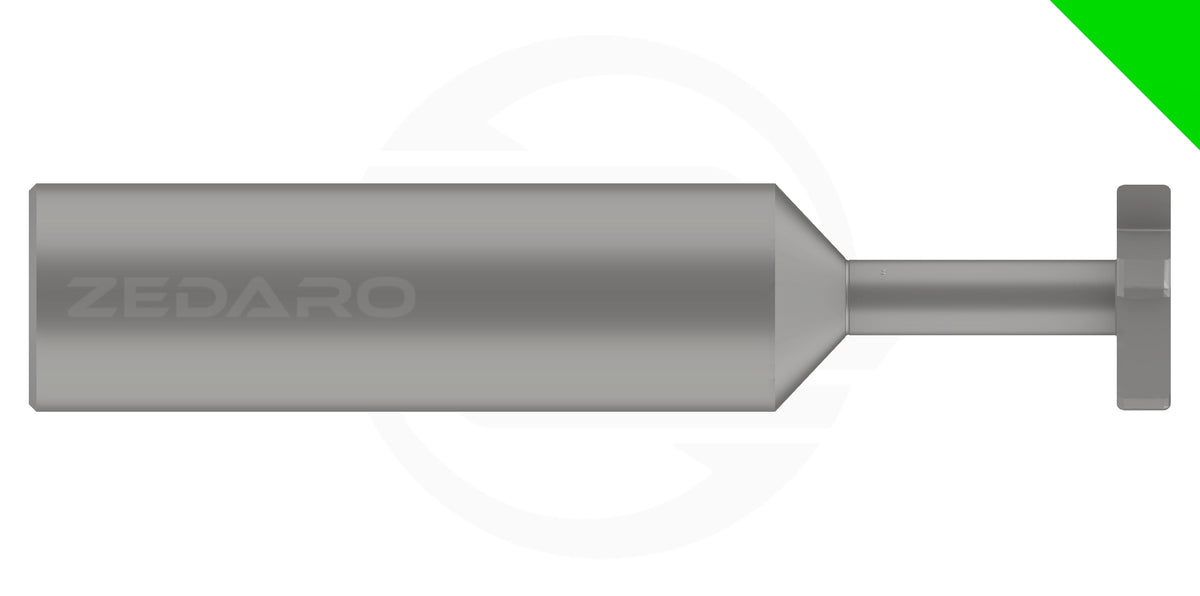

| Name | Zedaro GRNDRIFTR-12.60S3.00-18.0FLA22.0-N25AB1 | |
| EDP # | 0777797 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 4.0 oz | 125 g |
| Cutting Diameter | 0.4961" | 12.600 mm |
| Slot Thickness | 0.1181" | 3.000 mm |
| Application | General T-Slot Milling (Drifter) | |
| Form | Slot Mill | |
| Shank Diameter (h6) | 0.5000" | 12.700 mm |
| Cutting Edges | 4 | |
| Tolerance Class | h7 | |
| Length of Cut | 0.1181" | 3.000 mm |
| Overall Length | 2.5000" | 63.500 mm |
| Reach | 0.7087" | 18.000 mm |
| Minimum Extension | 0.8661" | 22.000 mm |
| Maximum Extension | 1.5000" | 38.100 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Drifter' line is for T-slotting; generating lateral slots/grooves in faces using the tool flank.
- 'S' form tools are for slotting and grooving, using the tool flank exclusively to produce geometry.
- The code 'FLA' refers to the bird species 'Flamingo'.
