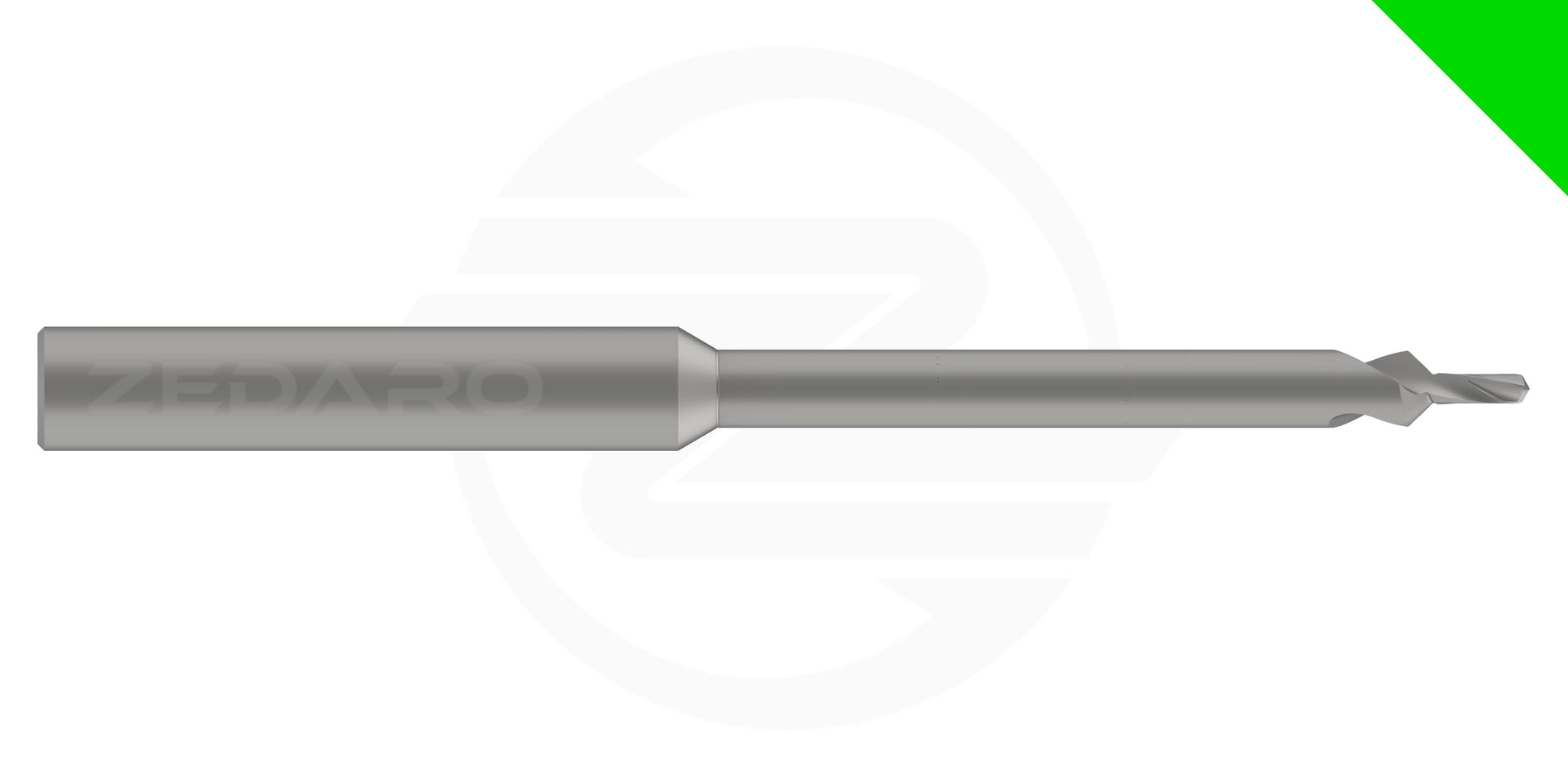

Zedaro GRNPOKERR-1.600Z2.00-3STEPDRIL-G30CG1 (0777837)
Zedaro GRNPOKERR-1.600Z2.00-3STEPDRIL-G30CG1 (0777837)
Couldn't load pickup availability
Zedaro UID: 0777837
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNPOKERR-1.600Z2.00-3STEPDRIL-G30CG1 | |
| EDP # | 0777837 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 1.0 oz | 37.0 g |
| Gauge Diameter | 0.0630" | 1.600 mm |
| Gauge Distance (from tip) | 0.0787" | 2.000 mm |
| Application | Finish Drilling, Tapping (Poker) | |
| Form | Contour / Profile | |
| Shank Diameter (h5) | 0.2500" | 6.350 mm |
| Cutting Edges | 2 | |
| Tolerance Class | h5 | |
| Length of Cut | 0.1764" | 4.480 mm |
| Overall Length | 3.0000" | 76.200 mm |
| Reach | 1.5748" | 40.000 mm |
| Minimum Extension | 1.6535" | 42.000 mm |
| Maximum Extension | 2.5000" | 63.500 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Poker' line is for general drilling and tapping with tighter tolerances.
- 'Z' form tools comprise of all arbitrary forms which do not match any other form category. These may be drills, mills, etc. where the key feature is accuracy of form.
- This is a custom design which does not follow standard proportions.
