Description
Ceratizit Article Number: 1069201250
Ceratizit Material Number: 15143788
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 1A0046-01250.m6..160.R02.HA.C400 WTX 90° Pilot Drill MICROPILOT 1069201250 | |
| EDP # | 0778895 | |
| Weight (1 pc.) | 0.5 oz | 14.0 g |
| Product-Carbon-Footprint | C | |

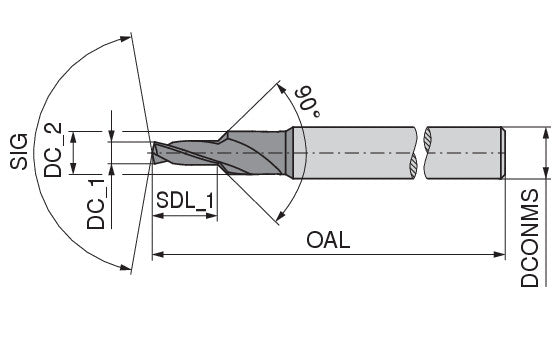

| Cutting diameter, 1st cutting step / DC_1 m6 | 0.0492" | 1.250 mm |
| Mounting spigot diameter / DCONMS h6 | 0.1575" | 4.000 mm |
| Cutting diameter, 2nd cutting step / DC_2 | 0.0984" | 2.500 mm |
| Overall length / OAL | 2.1654" | 55.000 mm |
| Step diameter length 1 / SDL_1 | 0.1230" | 3.120 mm |
| Length chip flute / LCF | 0.2953" | 7.500 mm |
| SIG / SIG | 160 ° | |
| Coating name / Grade (Ceratizit) / COATN | DPX74M | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
