Description
Ceratizit Article Number: 7403240000
Ceratizit Material Number: 14570378
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

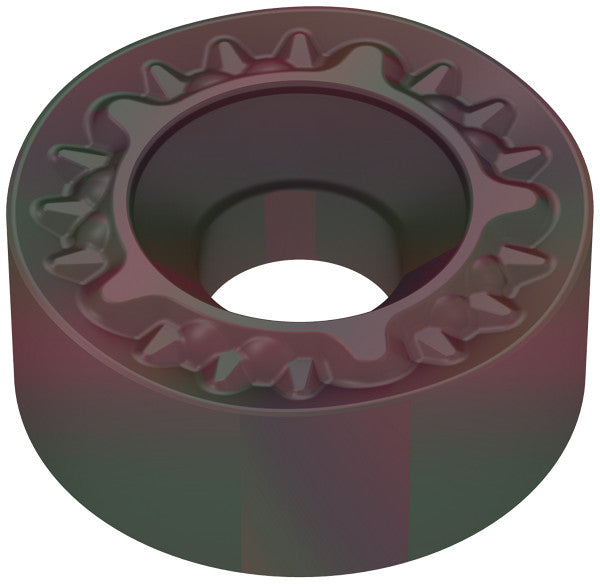

| Name | Ceratizit RNMH 200800E00-R56 CTCP625 MaxiTurn Carbide Bar Peeling indexable Insert 7403240000 | |
| EDP # | 0781872 | |
| Weight (1 pc.) | 1.0 oz | 27.8 g |
| Product-Carbon-Footprint | B | |

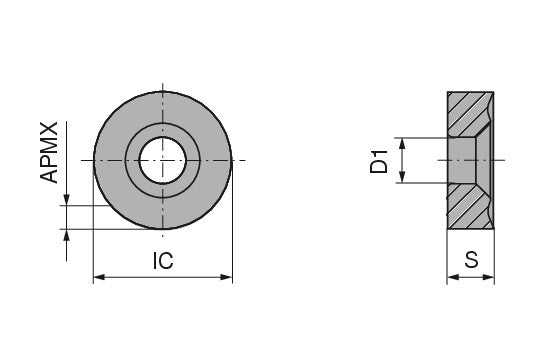

| Depth of cut maximum / APMX | 0.1181" | 3.000 mm |
| Insert thickness / S | 0.3150" | 8.000 mm |
| Fixing hole diameter / D1 | 0.2756" | 7.000 mm |
| Inscribed circle diameter / IC | 0.7874" | 20.000 mm |
| Insert index count / NOI | 5.0000" | 127.000 mm |
| 200800E00 | ||
| Face land size code / FLSC | E00 | |
| Chip breaker (Ceratizit) / CBMD | -R56 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP625 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
