Description
Ceratizit Article Number: 4983900001
Ceratizit Material Number: 14635316
Ceratizit Komet Number (Unpacked): 300.170610U0100
Ceratizit Komet Number (Packed): 300170610U0100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

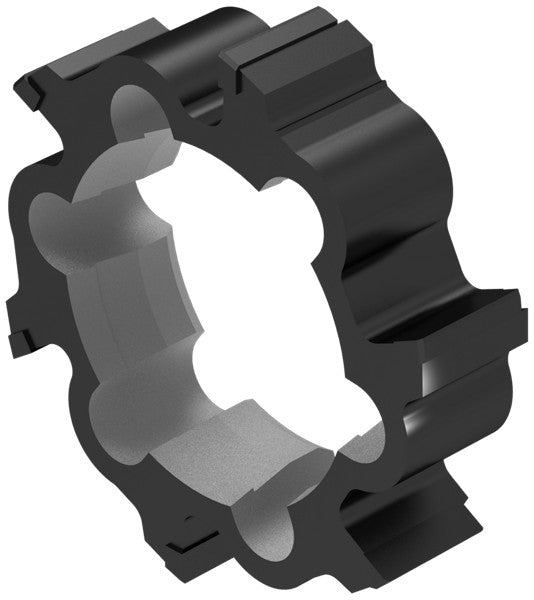

| Name | Ceratizit D060.6000M H7 ASG0706 CoreLine - Cutting Ring 4983900001 | |
| EDP # | 0782075 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |

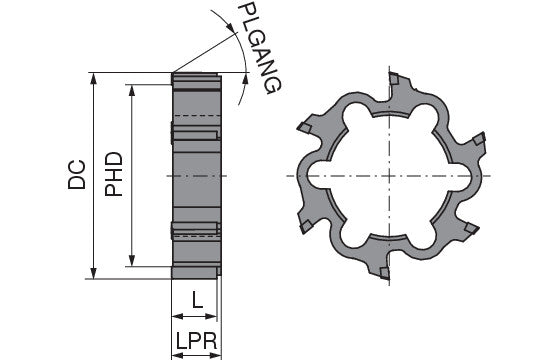

| Cutting diameter / DC | 2.3858" | 60.600 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Premachined hole diameter / PHD | DC-0.3307 | |
| Cutting edge length / L | 0.6299" | 16.000 mm |
| Coating name / Grade (Ceratizit) / COATN | DBC | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
